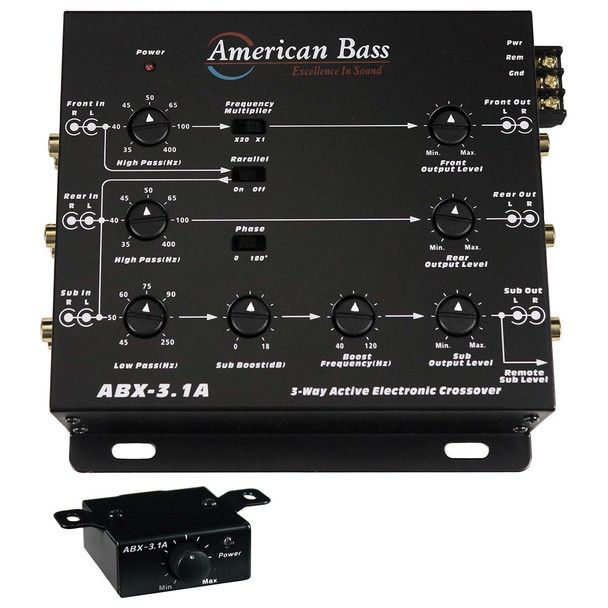

American Bass AB3X | 3-Way Active Crossover for Front, Rear, Sub (ABX-3.1A)

American Bass AB3X | 3-Way Active Crossover for Front, Rear, Sub w/Bass Knob Control

(Please note: This is the same item as the ABX-3.1A. It is a new part number, but retains all of the same features.)

Introducing the AB-3X Crossover from American Bass – the essential tool for delivering unmatched audio clarity and precision. Tailored for the discerning audiophile, this crossover effortlessly divides your music into distinct frequency bands, ensuring that each speaker in your system plays the frequencies for which it's best suited. By doing so, it creates a harmonious blend of highs, mids, and lows, resulting in a richer and more immersive listening experience. With its sleek design and cutting-edge technology, the AB-3X Crossover stands as a testament to American Bass's commitment to superior sound quality and innovation.

Also Known As: AB-3X / ABX3 / AB-X3 / ABX31A / ABX3.1A

Features:

• Independently Tune Your Front Speakers, Rear Speakers and Subwoofer

• 3 RCA Channels In & Out

• 12 Volt Input (Power/Ground/Remote)

• Includes Subwoofer Bass Knob

Specs:

• Switchable Front Low/High Filter: 35HZ - 400HZ (Low), 700HZ - 8KHZ (High)

• Switchable Rear Low/High Filter: 35HZ - 400HZ (Low), 700HZ - 8KHZ (High)

• Subwoofer Low Pass: 45HZ - 250HZ

• ON/OFF Preset Subwoofer Subsonic Filter: -24dB/Octave at 40HZ

• Maximum RCA Output Level: 8V Peak

• Total Frequency Response Capability: 10HZ - 50KHZ

• S/N Ratio: 110dB

• THD 0.01%

• Input Impedance: 20K OHMS

• Output Impedance: Less Than 150 Ohms

• Channel Separation: More Than 70dB

• Crossover Slope: -18dB/Octave

• Weight: 2 lbs.

Please feel free to send us a message if you have any questions about this item.
