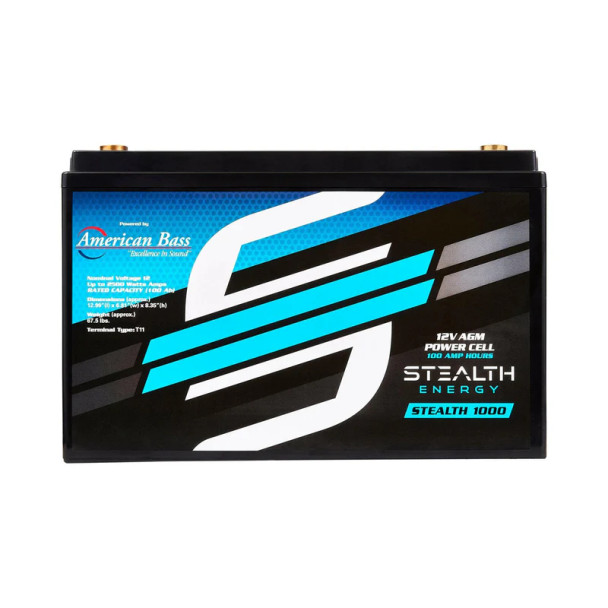

American Bass Stealth Energy STEALTH1000 | 12-Volt 100AH AGM Power Cell Battery

American Bass Stealth Energy STEALTH1000 | 12-Volt 100AH AGM Power Cell Battery

Introducing Stealth Energy Batteries, your ultimate solution for high-performance, energy-efficient power storage. Designed with cutting-edge technology, these batteries provide a reliable energy source for all your car audio needs.

STEALTH1000 - Ideal Secondary Battery for Amplifiers up to 2500W RMS

Also Known As: STEALTH-1000 / ST1000 / ST-1000

Nominal Voltage: 12 V
Nominal Capacity (20hr): 100.0 AH
Approx Weight: 22.3 Kg (67.5lbs)
Terminal: T11
Container Material: ABS
Max. Discharge Current: 1200A (5S)
Internal Resistance Approx: 4.9mΩ
Nominal Operating Temp. Range: 25.3 C (77.5 F )

Dimensions:

Length: 3300.3mm (12.99 inches)
Width: 173.2mm (6.81 inches)
Container Height: 212.3mm (8.35 inches)
Total Height (With Terminal): 220.3mm (8.66 inches)

Rated Capacity:

107.2 AH/5.36A: (20hr ,1.80V/cell,25 C/77 F)
100.0 AH/10.0A: (10hr ,1.80V/cell,25 C/77 F)
87.7 AH/17.5A: (5hr ,1.75V/cell,25 C/77 F)
79.5 AH/26.5A: (3hr ,1.75V/cell,25 C/77 F)
64.6 AH/64.6A: (1hr ,1.60V/cell,25 C/77 F)

Capacity Affected By Temperature:

40 C (104 F): 103%
25 C (77 F): 100%
0 C (32 F): 86%

Operating Temp. Range:

Discharge: -15~50 C (5~122 F)
Charge: 0~40 C (32~104 F)
Storage: -15~40 C (5~104 F)

Cycle Use:

Initial Charging Current less than 30.0A.Voltage
14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C

Standby Use:

No limit on Initial Charging Current Voltage
13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C

Self Discharge:

Batteries may be stored for up to 6 months at 25 C(77 F) and then a freshening charge is required.
For higher temperatures the time interval will be shorter.
