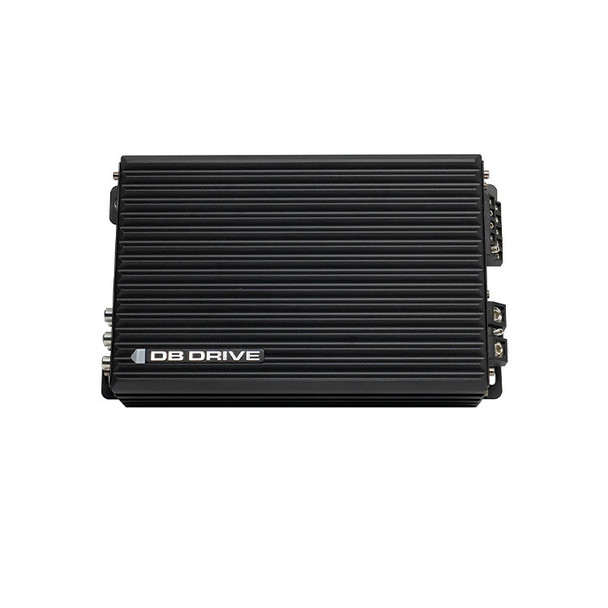

DB Drive DX Series 1000W 5 Channel Full Range Amplifier | DX-A1005

DB Drive DX Series 1000W 5 Channel Full Range Amplifier | DX-A1005

The DB DRIVE DX-A1005 delivers powerful, dynamic sound for both audiophiles and casual listeners. Transform your car into a high-performance sound system with the DB DRIVE DX-A1005. Experience superior sound today.

Also Known As: DXA1005 / DX-A100.5 / DX A1005 / DX A100.5

Specs:

• Total Dynamic Power Output: 1100 Watts

• 4 X 80 Watts + 1 X 250 Watts @ 4 Ohm

• 4 X 140 Watts + 1 X 450 Watts @ 2 Ohm

• Ch 1-2 High Pass Crossover: 40Hz - 300Hz

• Ch 3-4 High Pass Crossover: 40Hz - 300Hz

• Ch 5 Low Pass Crossover: 40Hz - 300Hz

• Subsonic Filter: 0 - 25 Hz

• Crossover Slope @ 12 dB

• Bass Boost @ 45Hz: 0-12dB

• Input Sensitivity: 250Mv - 6V

• Signal to Noise ratio: >92dB

• Frequency Response: 10Hz-22KHz

• Dimensions: 9.31" x 5.23" x 2.01"

Features:

• Class D Technology

• Direct Connect Speaker Terminals

• Large Gauge Power Wire Inputs

• PWM Mosfet Regulated Power Supply

• APC - Audio Protection Circuit

• SESI - Signal Evaluation Status indicator

• CHM - Collective Heat Management

• 2Ω stereo / 4Ω Bridged capability

• Remote Bass Control Included

Owner's Manual / Spec Sheet
