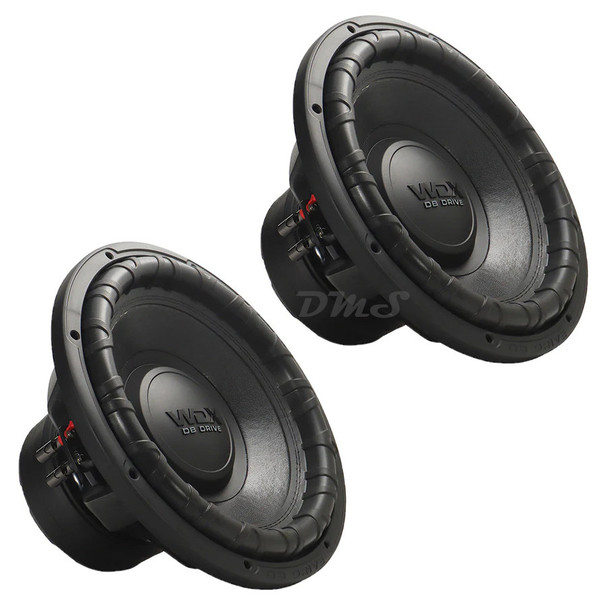

DB Drive WDX G3R 15 Inch 4000W Max DVC 4 Ohm Subwoofers | WDX15G3R.4 (Pair)

DB Drive WDX G3R 15 Inch 4000W Max DVC 4 Ohm Subwoofers | WDX15G3R.4 (Pair)

Designed for true bass enthusiasts, the WDX15G3R.4 subwoofers offer unmatched power and precision. Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. Built for Bass: Power handling up to 4000 watts dynamic (2000 watts nominal) The WDX15G3R.4 sets a new standard for earth-shaking bass. Ready to feel the difference?

Specs (each):

• Max Power Handling: 4000W

• RMS Power Handling: 2000W

• Impedance: DVC 4 Ohm

• Resonant Frequency (Fs): 29.495 Hz

• D.C. Voice Coil Resistance (Re): 2 X 3.2ω

• Mechanical Quality Factor (Qms): 3.501

• Electrical Quality Factor (Qes): 0.953

• Total Quality Factor (Qts): 0.749

• Equivalent Air Volume (Vas): 70.197 L

• Mass Of Diaphragm/coil (Mms): 380.982 G

• Mechanical Compliance Of Suspension (Cms): 76.427 Mm/n

• Force Factor (Bl): 21.772

• Sound Pressure Level (Spl): 84.6 dB

• X-max: 23mm

• Outside Diameter: 15.63"

• Mounting Diameter: 13.72"

• Mounting Depth: 8.15"

Features:

• 3.0″ 4 Layer Anodized Aluminum High Temperature Voice Coil

• Non-Pressed Paper Cone

• Double-Stitched Reinforced Foam Surround

• Dual Poly-Cotton Dampeners

• Die-Cast Aluminum Vented Basket

• Rubber Gasket Trim Ring

• Large Gauge Compression Terminals

• Protective Magnet Cover

• Recommended Ported Box Volume (each): 4.08 Cubic Feet
