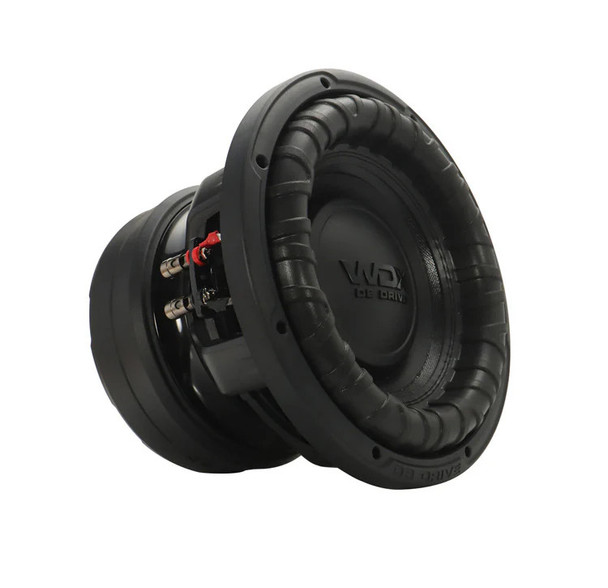

DB Drive WDX G5R 10 Inch 3000W Max DVC 4 Ohm Subwoofer | WDX10G5R.4

(1) DB Drive WDX G5R 10 Inch 3000W Max DVC 4 Ohm Subwoofer | WDX10G5R.4

Designed for true bass enthusiasts, the WDX10G5R.4 subwoofers offer unmatched power and precision. Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. Built for Bass: Power handling up to 3000 watts dynamic (1500 watts nominal) The WDX10G5R.4 sets a new standard for earth-shaking bass. Ready to feel the difference?

Specs:

• Max Power Handling: 3000W

• RMS Power Handling: 1500W

• Impedance: DVC 4 Ohm

• Resonant Frequency (Fs): 31.398 Hz

• D.C. Voice Coil Resistance (Re): 2 X 3.2ω

• Mechanical Quality Factor (Qms): 3.102

• Electrical Quality Factor (Qes): 0.498

• Total Quality Factor (Qts): 0.429

• Equivalent Air Volume (Vas): 13.084 L

• Mechanical Compliance Of Suspension (Cms): 72.569 Mm/n

• Mass Of Diaphragm/coil (Mms): 354.060 G

• Force Factor (Bl): 29.960

• Sound Pressure Level (Spl): 81 dB

• Outside Diameter: 10.98"

• Mounting Diameter: 9.47"

• Mounting Depth: 7.52"

Features:

• 3.0″ 4 Layer Anodized Aluminum High Temperature Voice Coil

• Non-Pressed Paper Cone

• Double-Stitched Reinforced Foam Surround

• Dual Poly-Cotton Dampeners

• Die-Cast Aluminum Vented Basket

• Rubber Gasket Trim Ring

• Large Gauge Compression Terminals

• Protective Magnet Cover

• Recommended Ported Box Volume: 1.2 Cubic Feet
