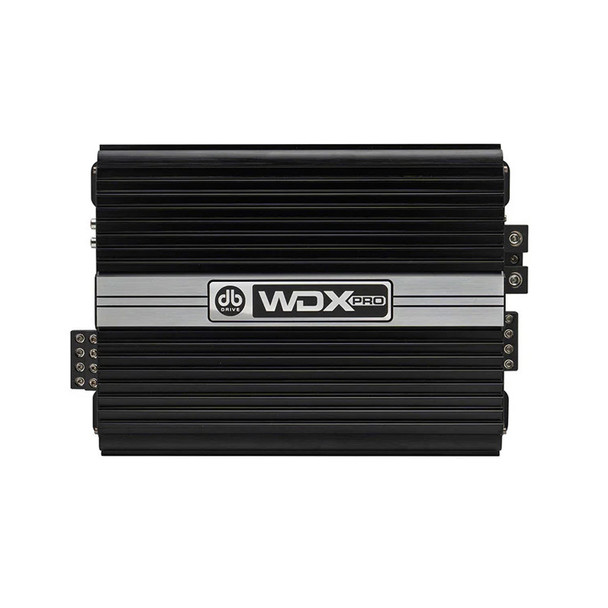

DB Drive WDX PRO Series 2200W 5 Channel Full Range Amplifier | WDX PRO2500.5

DB Drive WDX PRO Series 2200W 5 Channel Full Range Amplifier | WDX PRO2500.5

Why choose the WDX PRO2500.5 amplifier? Achieve superior audio performance with the DB Drive WDX PRO2500.5, a 5-channel Class D amplifier built for high output and crystal-clear sound. Effortlessly power your full 4-channel stereo system alongside an additional subwoofer. Key Features: Adaptive Crossover: Optimizes performance for tweeters, mids, and subwoofers. CHM: Ensures consistent power and prevents overheating. SESI Circuit: Monitors in real time to protect against overdriving. Large-Gauge Terminals: Supports 4-gauge wiring for maximum efficiency. With 4 x 200 Watts and 1 x 1000 Watts at 1Ω, the WDX PRO2500.5 elevates your car audio system, delivering powerful, dynamic sound.

Also Known As: WDXPRO25005 / WDX-PRO25005 / WDXPRO2500.5 / WDX-PRO2500.5 / WDXPRO-2500.5 / WDX-PRO-2500.5 / WDX PRO-2500.5

Specs:

• 4 X 100 Watts @ 4 Ohms

• 4 X 200 Watts @ 2 Ohms

• 4 X 300 Watts @ 1 Ohm

• (5th Ch) 1 X 1000 Watts @ 1 Ohm

• Working Voltage: 12-15 Volts

• Frequency Response: 15 Hz - 20k Hz

• Signal To Noise Ratio: <96dB

• Act - Variable Crossover Hp/Bp/Lp

• Damping Factor: ≥200

• Low Level Input: 6v - 0.2mv

• Ch 1/2 High Pass Filter Variable: 15 Hz - 2k Hz

• Ch 1/2 Low Pass Filter Variable: 50 Hz - 2k Hz

• Ch 3/4 High Pass Filter Variable: 15 Hz - 2k Hz

• Ch 3/4 Low Pass Filter Variable: 50 Hz - 2k Hz

• Minimum Working Impedance: 1 Ohm

• Dimensions: 13" x 9.25" x 2.75"

Features:

• ATC - Audiophile RCA Connectors

• ACT - Adaptive Crossover Technology

• High efficiency Class Full Range Class D Technology

• Direct Connect Speaker Terminals

• 0 Gauge Power Wire Inputs

• APC - Audio Protection Circuit

• SESI - Signal Evaluation Status Indicator

• Bass Remote with voltage, temperature and signal status indicator

• CHM - Collective Heat Management

Owner's Manual

Shop For Wiring & Batteries

Please feel free to send us a message if you have any questions about this item.
