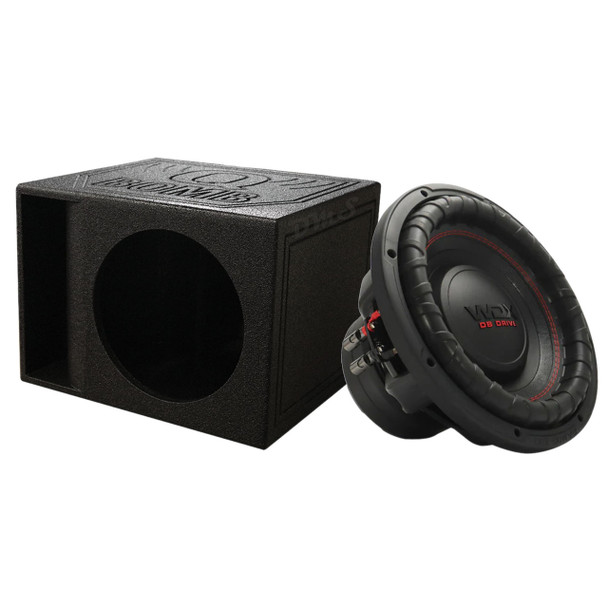

DB Drive WDX12G2R.2 Package | 12 Inch 2500W Max DVC 2 Ohm Subwoofer & QBomb Kerf Ported Box

DB Drive WDX12G2R.2 Package | 12 Inch 2500W Max DVC 2 Ohm Subwoofer & QBomb Kerf Ported Box

Designed for true bass enthusiasts, the WDX 12 G2R subwoofers offer unmatched power and precision. Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. (WDX 12 G2R 2 Ohm)

Subwoofer Details:

• Max Power Handling: 2500W

• RMS Power Handling: 1250W

• Impedance: DVC 2 Ohm

• Resonant Frequency (fs): 30.95 Hz

• Mechanical Quality Factor (Qms): 3.95

• Electrical Quality Factor (Qes): 1.18

• Total Quality Factor (Qts): 0.91

• Equivalent Air Volume (Vas): 33.06 L

• Mechanical Compliance of Suspension (CMS): 86.526 mm/N

• Mass of Diaphragm/Coil (Mms): 305.70 g

• Force Factor (BL): 14.18

• Sound Pressure Level (SPL): 81.1dB

• X-max: 20 mm

• Outside Diameter: 12.95"

• Mounting Diameter: 11.18"

• Mounting Depth: 7.28"

• 3" Anodized Aluminum High Temperature Voice coil

• Non-Pressed Paper Cone

• Double Stitched Reinforced Foam Surround

• Dual Poly-Cotton Dampeners

• Die-Cast Aluminum Vented Basket

• Rubber Gasket Trim Ring

• Large Gauge Compression Terminals

• Protective Magnet Cover

Box Details:

• 3/4" MDF Construction

• Machine Precision Cut Mounting Hole

• Top of The Line Glue For Extra Durable Adhesion

• High Quality Spring Loaded Terminal

• Type of Enclosure: Kerf Vent

• Enclosure Sub Size: 12"

• Dimensions: 19.75" L x 14.25" W x 17" H

• Top and Bottom Depth: 17"

• Tuning Frequency: 34Hz

• Internal Volume: 2.0 Cubic Feet
