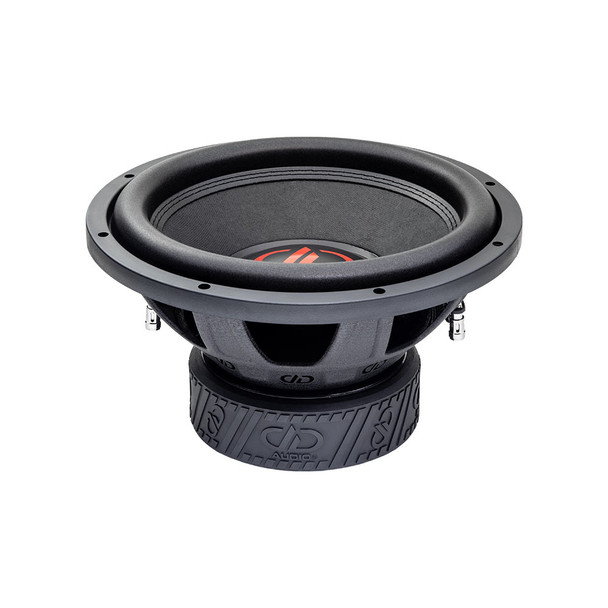

DD Audio 500-Series 12 Inch 2100W DVC 4 Ohm Subwoofer | 512e

DD Audio 500-Series 12 Inch 2100W DVC 4 Ohm Subwoofer | 512e

The all new 500 Series “e” revision 15 inch subwoofer comes to us featuring 3” voice coils with 120oz magnet motor. These new drivers come with a 12mm top plate and longer coil windings that result in a 50% increase of Xmax. The power handling increases to 700 Watts on the 512e. Upgrades to this series include cones with fiberglass loaded non-pressed treated paper, taller and thicker EROM surrounds with black stitching, heavier dual layer spiders with integrated tinsel leads, and new basket and motor boot designs elevating cosmetics with DD branding.

Specs:

• Speaker Size (In): 12

• Watts RMS: 700

• Watts Peak: 2100

• Impedance: D4

• VCD (In): 3

• Piston Diameter (In): 10

• Fs (Hz): 33

• Qms: 4.88

• Qes: 0.73

• Qts: 0.64

• Vas (Liters): 30.16

• BL (TM): 25

• Xmech (MM): 30

• Xmax (MM): 18

• Frame OD (In): 12.125

• Frame OD w/Gasket (In): 12.4

• Mounting Diameter (In): 11.02

• Mounting Depth (In): 6.5

• Motor Diameter (In): 7

• Motor Depth (In): 2.5

• Magnet Weight (Oz): 120

• Woofer Displacement (CuFt): 0.08

• Ported Enclosure (CuFt): 1.75 - 2.75

• Shipping Weight (Lbs): 19

Features:

• Free Flow Cooling System

• High-temp Voice Coil

• Dual Layer Spider System With Integrated Tinsel Leads

• Extended Pole Piece

• DD Logo Basket

• Double Stitched EROM Surrounds

• Fiberglass Loaded Non-Pressed Cones

• Embossed DDesign Magnet Boot

Shop For Subwoofer Amplifiers

Shop For Subwoofer Boxes

Browse Custom Box Builders

Please feel free to send us a message if you have any questions about this item.
