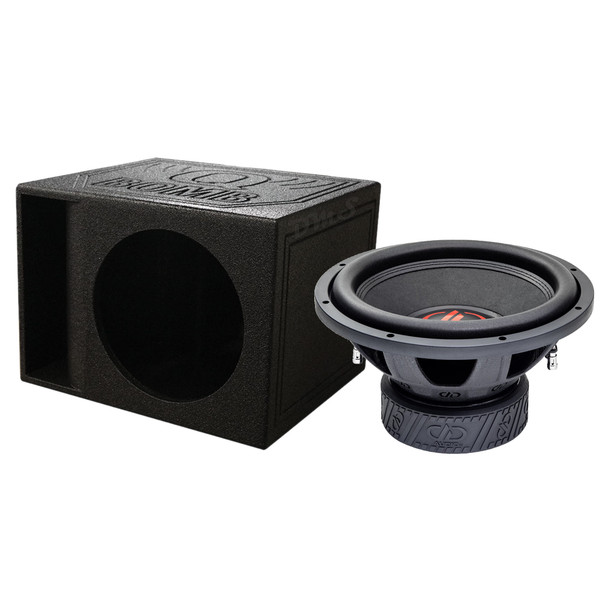

DD Audio 500-Series 512e Package | 12" 2100W D4 Ohm Subwoofer & QBomb Kerf Ported Box

DD Audio 500-Series 512e Package | 12" 2100W D4 Ohm Subwoofer & QBomb Kerf Ported Box

The all new 500 Series “e” revision 15 inch subwoofer comes to us featuring 3” voice coils with 120oz magnet motor. These new drivers come with a 12mm top plate and longer coil windings that result in a 50% increase of Xmax. The power handling increases to 700 Watts on the 512e. Upgrades to this series include cones with fiberglass loaded non-pressed treated paper, taller and thicker EROM surrounds with black stitching, heavier dual layer spiders with integrated tinsel leads, and new basket and motor boot designs elevating cosmetics with DD branding.

Subwoofer Details:

• Speaker Size (In): 12

• Watts RMS: 700

• Watts Peak: 2100

• Impedance: D4

• VCD (In): 3

• Piston Diameter (In): 10

• Fs (Hz): 33

• Qms: 4.88

• Qes: 0.73

• Qts: 0.64

• Vas (Liters): 30.16

• BL (TM): 25

• Xmech (MM): 30

• Xmax (MM): 18

• Frame OD (In): 12.125

• Frame OD w/Gasket (In): 12.4

• Mounting Diameter (In): 11.02

• Mounting Depth (In): 6.5

• Motor Diameter (In): 7

• Motor Depth (In): 2.5

• Magnet Weight (Oz): 120

• Woofer Displacement (CuFt): 0.08

• Shipping Weight (Lbs): 19

• Free Flow Cooling System

• High-temp Voice Coil

• Dual Layer Spider System With Integrated Tinsel Leads

• Extended Pole Piece

• DD Logo Basket

• Double Stitched EROM Surrounds

• Fiberglass Loaded Non-Pressed Cones

• Embossed DDesign Magnet Boot

Box Details:

• 3/4" MDF Construction

• Machine Precision Cut Mounting Hole

• Top of The Line Glue For Extra Durable Adhesion

• Spring Loaded Wire Terminal

• Type of Enclosure: Kerf Vented

• Enclosure Sub Size: 12"

• Dimensions: 19.75" L x 14.25" W x 17" H

• Top & Bottom Depth: 17"

• Tuning Frequency: 34Hz

• Internal Volume: 2.0 Cubic Feet
