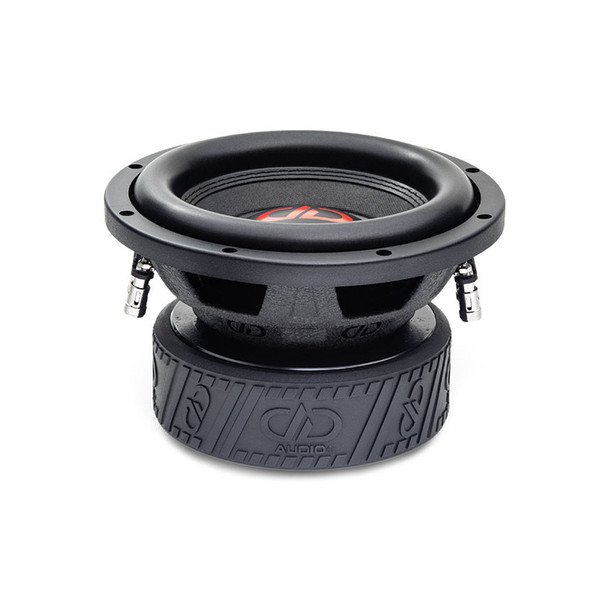

DD Audio 500-Series 8 Inch 1500W DVC 2 Ohm Subwoofer | 508e

DD Audio 500-Series 8 Inch 1500W DVC 2 Ohm Subwoofer | 508e

The all new 500 Series “e” revision comes to us with an 8” featuring a 2.5” voice coil and 100oz Magnet. These new drivers come with an extra 12mm of top plate and longer coil windings that result in a 50% increase of Xmax. The power handling increases to 500 Watts on the 508. Upgrades to this series include cones with fiberglass loaded non-pressed treated paper, taller and thicker EROM surrounds with black stitching, heavier dual layering with integrated tinsel leads, and new basket and motor boot designs elevating cosmetics with DD branding.

Specs:

• Speaker Size (In): 8

• Watts RMS: 500

• Watts Peak: 1500

• Impedance: D2

• VCD (In): 2.5

• Piston Diameter (In): 6.25

• Fs (Hz): 44

• Qms: 5.01

• Qes: 0.82

• Qts: 0.71

• Vas (Liters): 4.19

• BL (TM): 24

• Xmech (MM): 22

• Xmax (MM): 14

• Frame OD (In): 8.25

• Frame OD w/Gasket (In): 8.375

• Mounting Diameter (In): 7.125

• Mounting Depth (In): 4.875

• Motor Diameter (In): 6.125

• Motor Depth (In): 2.5

• Magnet Weight (Oz): 100

• Woofer Displacement (CuFt): 0.04

• Ported Enclosure (CuFt): 0.5 - 1.0

• Shipping Weight (Lbs): 14

Features:

• Free Flow Cooling System

• High-temp Voice Coil

• Dual Layer Spider System With Integrated Tinsel Leads

• Extended Pole Piece

• DD Logo Basket

• Double Stitched EROM Surrounds

• Fiberglass Loaded Non-Pressed Cones

• Embossed DDesign Magnet Boot
