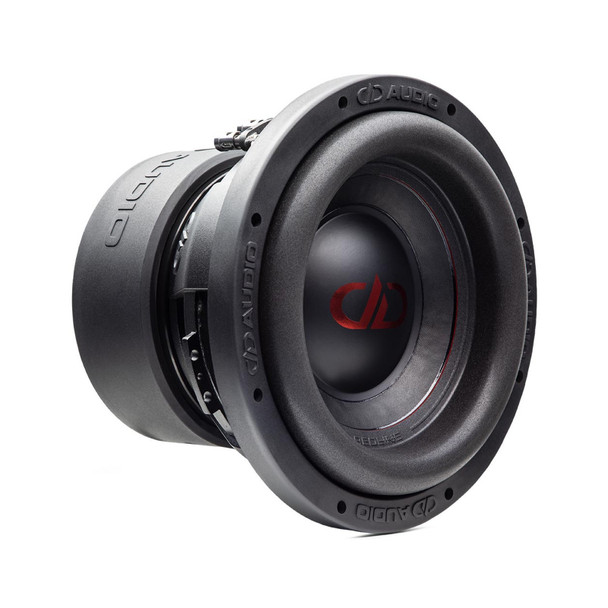

DD Audio 700-Series 10 Inch 3600W DVC 4 Ohm Subwoofer | 710d

(1) DD Audio 700-Series 10 Inch 3600W DVC 4 Ohm Subwoofer | 710d

The 700 Series offers some of DD AUDIO’s most revered Power Tuned Subwoofers designed for exceptional power handling, with hard core bassheads in mind.

The 700 series is designed for serious performance. It features a DD cast basket supporting a triple stack magnet motor, heavy duty suspension, and a high strength cone coupled to a massive EROM surround, making them best suited for duty in vented or multi-order enclosures.

All of them incorporate the very best component parts and the newest models feature the latest in state-of-the-art design to ensure maximum efficiency for a power range that serves a variety of applications by offering competition grade performance with the power handling to match. They are for the basshead looking to get loud in their daily drivers or to demo all day in their show-stomping builds.

Specs:

• Speaker Size (In): 10

• Watts RMS: 600 - 1200

• Watts Peak: 3600

• Impedance: D4

• VCD (In): 3

• Piston Diameter (In): 8.5

• Fs (Hz): 28.53

• Qms: 3.786

• Qes: 0.350

• Qts: 0.321

• Vas (Liters): 21.42

• Xmech (MM): 80

• Xmax (MM): 14

• Frame OD w/Gasket (In): 10.625

• Mounting Diameter (In): 9.31

• Mounting Depth (In): 7.125

• Motor Diameter (In): 7.75

• Motor Depth (In): 3.5

• Woofer Displacement (CuFt): 0.14

• Ported Enclosure (CuFt): 1.25 - 1.5

• Shipping Weight (Lbs): 36

Features:

• Erom Surround

• High-Temp, 3.0”, Voice Coil

• Triple Layer Deep Bass, High Excursion Spider System

• Unique Glass Fiber And Natural Pulp Cone

• Back Plate Coil Gap Venting

• Extended Pole Piece

• DD Cast Basket
