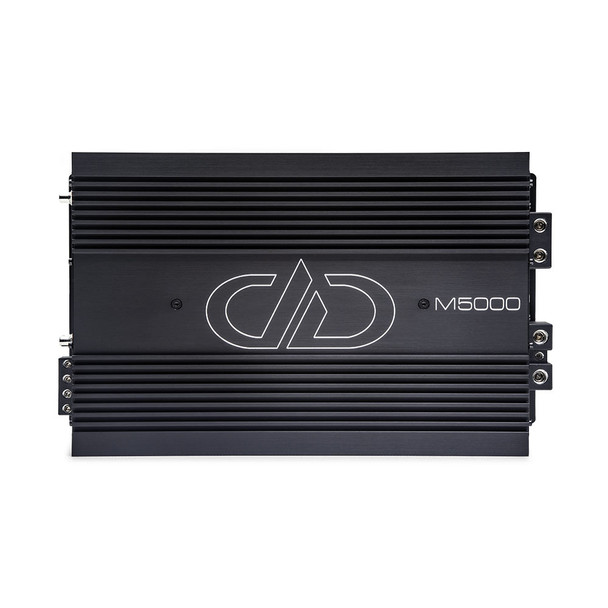

DD Audio M-Series 5000W RMS Monoblock Subwoofer Amplifier | M5000

DD Audio M-Series 5000W RMS Monoblock Subwoofer Amplifier | M5000

DD AUDIO continues to redefine the venerable M Series with revisions that greatly improve power and efficiency without increasing unit size. The M5000 incorporates the finest in ultra-high current devices and optimizes their usage with intelligent configuration to successfully maintain the modest footprint of its predecessor.

Using design features borrowed from the award winning Z12000, the new M Series expands its operating voltage with improvements to the power supply, output section, and high efficiency heat sink, giving it a 16v max operation that takes full advantage of today’s lithium batteries. These enhancements allow the best power to footprint ratio to date!

To further enhance performance, the M Series features new end panels, raising the amps off the mounting surface, allowing the internal fan to pull more air through the PCB even on carpeted or padded surfaces.

These high current half bridge amps are more compact, lighter and pack more punch than any previous M Series.

Specs:

• Operating Voltage: 9 - 16

• Test Voltage: 14.4

• Input Channel(s): 1

• Output Channel(s): 1

• Continuous Wattage @4ohm: 1900

• Continuous Wattage @2ohm: 3000

• Continuous Wattage @1ohm: 5000

• Max Current Draw (Amps): 700

• RCA Input Voltage Sensitivity: 8 - 0.25

• RCA Input S/N: > 97

• Damping Factor: > 400

• Frequency Response (Hz): 20 - 500

• Sub-Sonic Filter (Hz): 20 - 250

• Low-Pass Filter (Hz): 50 - 500

• Remote Control: Remote Included in Box

• ZVL Input: Yes

• Pass Thru Output: No

• Remote Control: Included

• Power Wire Gauge: 2x 0

• Speaker Wire Gauge: 10

• Dimensions (Inches): 13.4 x 9 x 2.6

• Dimensions (MM): 340 x 230 x 66

• Shipping Weight (Lbs): TBD

Features:

• Optimized Uber High Current Power Supply

• Strappable Half Bridge Design

• ZVL Linking Module Input

• 24dB/Oct Bandpass Filters

• Custom Vanity Plate Ready (not included)

• Remote / LCD Voltage Display and Clipping Indicator

• 5000 Watts RMS Continuous Power
