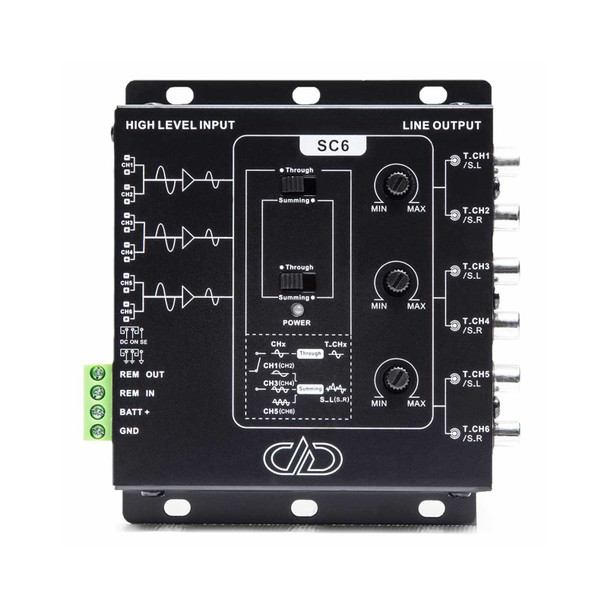

DD Audio SC6 | 6 Channel Line Output Signal Converter LOC

DD Audio SC6 | 6 Channel Line Output Signal Converter LOC

The SC6 is a premium quality 6 channel line output signal converter. Installers will appreciate the metal chassis and easy access to features such as input channel summing, turn on selection, and grounding selection. To allow for greater OEM interface compatibility, the SC6’s input impedance allows it to integrate with most load detect systems without the need for external resistors.

Specs:

• Operating Voltage: 10 - 16

• Input Channel(s): 6 x Speaker-Level

• Output Channel(s): 6 x Low-Level RCA

• Max Current Draw (Amps): 100mA

• High-Level Input Voltage Sensitivity: 2 - 20

• RCA Output Voltage: 10

• RCA Input Impedance: 180

• RCA Input S/N: > 95dB

• Frequency Response (Hz): 10 ~ 50k

• Remote Out Current: 12V >500mA

• Dimensions (Inches): 3.8 x 4.6 x 1

• Dimensions (MM): 98 x 119 x 25

Features:

• Input Summing

• Differential-Balanced Inputs

• Independent Variable Gains

• Selectable Ground Isolation

• Signal Sense Turn on (RCA and High Level)

• Double Power Supply

• Detachable Power and Speaker Input Terminals

• FR4 PCB

• Aluminum Chassis

• OEM Load Detect Compatible

Shop For Wiring & Batteries

Please feel free to send us a message if you have any questions about this item.
