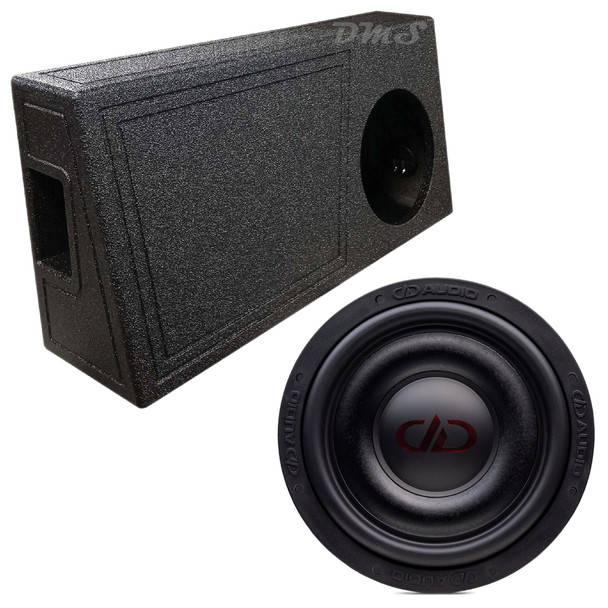

DD Audio SL600 Series SL610 Package | 10" 1200W D2 Subwoofer & QBomb Ported Truck Box

DD Audio SL600 Series SL610 Package | 10" 1200W D2 Subwoofer & QBomb Ported Truck Box

The SL600 Series subwoofers that give you the bass you want, in almost any space you want to put it. They feature super shallow mounting depths, and the suspensions have been tuned to perform in sealed and small vented enclosures. To maintain power handling, cooling and excursion the SL600s utilize full size sub features such as 2.5 ” high temperature voice coil, 72oz magnet, back plate coil gap venting, and an EROM surround. One of the features unique to the SL600s is the triple layer shallow body cone. By compressing a layer of foam between two layers of pulp the cone is kept as light and rigid as a standard cone, yet shallow enough to allow suspension travel equal to a full size sub.

Subwoofer Details:

• Speaker Size (In): 10

• Watts RMS: 300 - 600

• Watts Peak: 1200

• Impedance: D2

• VCD (In): 2.5

• Piston Diameter (In): 8.32

• Fs (Hz): 29

• Qms: 6.878

• Qes: 0.393

• Qts: 0.372

• Vas (Liters): 26.769

• dB SPL: 84

• Xmech (MM): 40

• Xmax (MM): 14.5

• Frame OD (In): 10.6

• Frame OD (MM): 269.24

• Frame OD w/Gasket (In): 10.827

• Mounting Diameter (In): 9.252

• Mounting Depth (In): 3.976

• Motor Diameter (In): 6.496

• Motor Depth (In): 1.5

• Magnet Weight (Oz): 80

• Woofer Displacement (CuFt): 0.03

• Shipping Weight (Lbs): 15

• EROM surround

• High temperature 2.5” voice coil

• Double layer spider system

• Triple layer shallow body cone

• 80oz magnet

• Back plate coil gap venting

• DD cast aluminum frame

Box Details:

• 5/8" MDF Construction

• Machine Precision Cut Mounting Hole

• Top of The Line Glue For Extra Durable Adhesion

• Durable Black Bedliner Coating

• Spring Loaded Speaker Terminals

• Type of Enclosure: Vented

• Enclosure Sub Size: 10"

• Dimensions: 30.75" L x 15" H x 5" (Top Depth) x 8" (Bottom Depth)

• Port Dimensions: 3" x 5"

• Maximum Mounting Depth: 5.0"

• Internal Volume: 1.17 Cubic Feet
