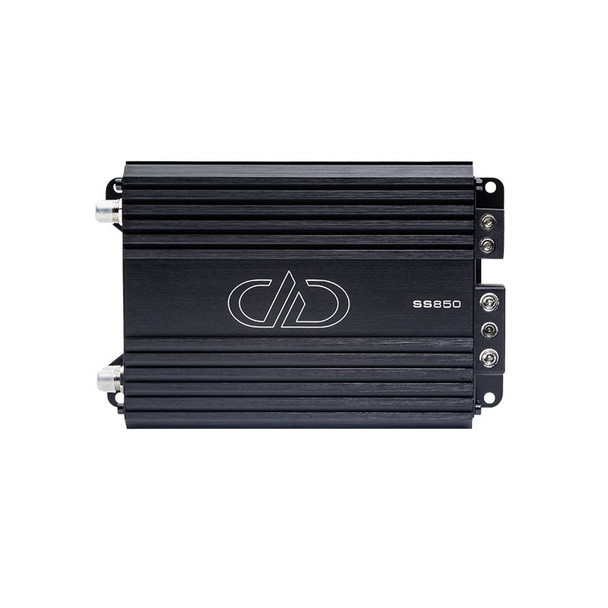

DD Audio SS-Series 850W RMS Monoblock Subwoofer Amplifier | SS850

DD Audio SS-Series 850W RMS Monoblock Subwoofer Amplifier | SS850

Maximum efficiency, from stock electrical systems, is the aim of the SS850. Coming in at over 850 Watts RMS under 1% THD, it can drive single, dual or even triple subs to high output levels. Sharing the same architecture as the other full range, high speed, half bridge SS amplifiers, the over-spec power supply delivers the strong impact that low cost full bridge designs fall flat on.

The new SS/SX amplifiers are the latest in high speed, high current class D designs offering high power and superior sound quality in compact footprints. The classic DD AUDIO style heat sink is used in this upgrade for max cooling with 50% more side wall thickness than industry norms and extra long fins to increase surface area.

When every Watt matters, the SS850 delivers the best bang for the buck.

Specs:

• Operating Voltage: 9 - 16

• Test Voltage: 14.4

• Input Channel(s): 2

• Output Channel(s): 1

• Continuous Wattage @2ohm: 575

• Continuous Wattage @1ohm: 850

• Max Current Draw (Amps): 90

• RCA Input Voltage Sensitivity: 6 - 0.25

• RCA Input S/N: > 95

• Damping Factor: > 100

• THD: < 1.0%

• Frequency Response (Hz): 20 - 20k

• Sub-Sonic Filter: 20 - 80

• Low-Pass Filter: 80 - 20K

• ZVL Input: Yes

• Remote Control: Remote Included in Box

• Power Wire Gauge: 4

• Speaker Wire Gauge: 8

• Dimensions (Inches): 5.75 x 4.6 x 2

• Dimensions (MM): 141 x 117 x 50

• Shipping Weight (Lbs): 4

Features:

• High Level Inputs

• Toroidal Power Supply

• 12dB/Oct High Pass/Low Pass X-Overs

• Heavyweight DD Aluminum Chassis

• Set Screw Power and Speaker Terminals

• Remote Gain Control

• 4 AWG Power Terminals
