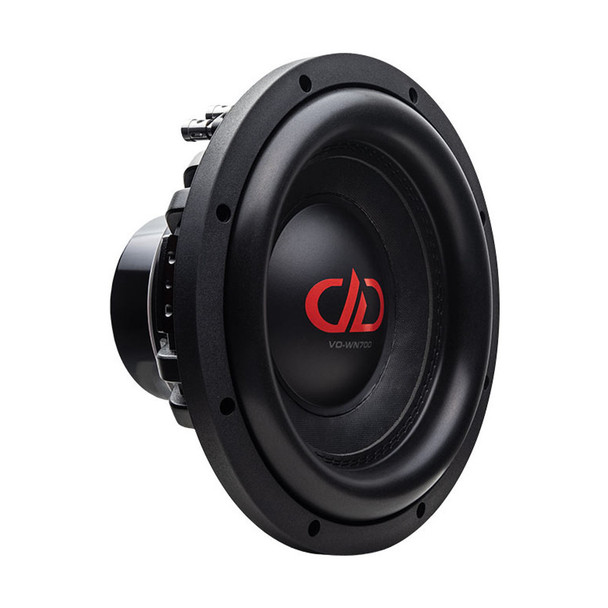

DD Audio VO-700-Series 10 Inch 1200W DVC 4 Ohm NEO Subwoofer | VO-WN710

DD Audio VO-700-Series 10 Inch 1200W DVC 4 Ohm NEO Subwoofer | VO-WN710

The new neo magnet motor VO-WN700s are drivers made to satisfy an underappreciated bandwidth between the bottom end of a midrange and the heavy lows of the subwoofer, striking a balance of clarity and power that puts them in a class of their own. With a rich pedigree tracing back to the 1990’s era of Digital Designs 9000 Series subwoofers, and a sleek undemanding profile, these woofers have been made for applications where depth is limited, but expectations are not.

The feature rich VO-WN700 woofers are the ideal choice when the system design requires a higher crossover pointing to high output midranges, where normal subwoofer roll-off leaves a frequency gap. Best of all, the combination of high motor force, tight control, and compact cast frame with neo motor allow the VO-WN700s to be used in small vented box designs, taking advantage of vehicle acoustic loading, allowing you to enjoy the low end punch with a higher frequency attack, from a myriad of locations in the most cramped spaces, like motorcycle bags.

Specs:

• Speaker Size (In): 10

• Watts RMS: 1200

• Impedance: D4

• VCD (In): 3

• Frequency Response (Hz): 30 - 2K

• Fs (Hz): 40

• Qms: 4.68

• Qes: 0.43

• Qts: 0.38

• Vas (Liters): 10.3

• Xmax (MM): 12

• Suspension Travel (MM): 30

• Mounting Diameter (In): 9.39

• Mounting Depth (In): 4.8

• Motor Diameter (In): 4.3

Features:

• 4.3” Diameter, Neo Magnet Motor

• Multi-Vent Free Flow Cooling System

• Aluminum Shorting Ring

• 3” High-Temp Voice Coil

• Excursion Optimized Compact Cast Frame

• High Density Surround

• Weather Resistant Pressed Cone

• 7.5” Dual Layer Cloth Spider

• 1200 Watt RMS Power Handling

• Less Than 10 Pounds
