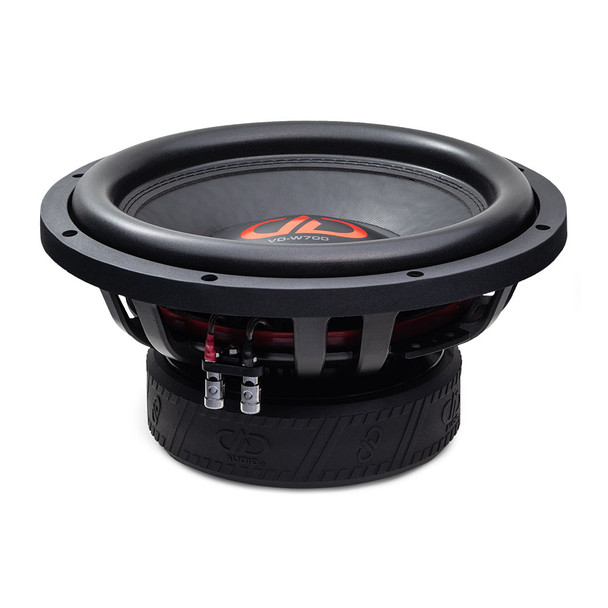

DD Audio VO-700-Series 12 Inch 1200W DVC 4 Ohm Subwoofer | VO-W712

(1) DD Audio VO-700-Series 12 Inch 1200W DVC 4 Ohm Subwoofer | VO-W712

The VO-W700s are drivers made to satisfy an underappreciated bandwidth between the bottom end of a midrange and the heavy lows of the subwoofer, striking a balance of clarity and power that puts them in a class of their own. With a rich pedigree tracing back to the 1990’s era of Digital Designs 9000 Series subwoofers, and a sleek undemanding profile, these woofers have been made for applications where depth is limited, but expectations are not.

The feature rich VO-W700 woofers are the ideal choice when the system design requires a higher crossover pointing to high output midranges, where normal subwoofer rolloff leaves a frequency gap. Best of all, the combination of high motor force, tight control, and compact cast frame, allow the VO-W700s to be used in small vented box designs, taking advantage of vehicle acoustic loading, allowing you to enjoy the low end punch with a higher frequency attack, from a myriad of locations in the most cramped of cabin spaces.

Specs:

• Speaker Size (In): 12

• Watts RMS: 1200

• Impedance: D4

• VCD (In): 3

• Frequency Response (Hz): 35 - 2K

• Fs (Hz): 40.85

• Qms: 5.807

• Qes: 0.517

• Qts: 0.475

• Vas (Liters): 17.57

• dB SPL: 100

• BL (TM): 30

• Xmech (MM): 30

• Xmax (MM): 12

• Suspension Travel (MM): 30

• Mounting Diameter (In): 11.375

• Mounting Depth (In): 5.12

• Motor Diameter (In): 7.4

Features:

• 7.4” Diameter, Double Magnet Motor

• Multi-Vent Free Flow Cooling System

• Aluminum Shorting Ring

• 3” High-Temp Voice Coil

• Excursion Optimized Compact Cast Frame

• High Density Surround

• Weather Resistant Pressed Cone

• 7.5” Dual Layer Cloth Spider

• 1200 Watt RMS Power Handling

• Embossed DDesign Magnet Boot
