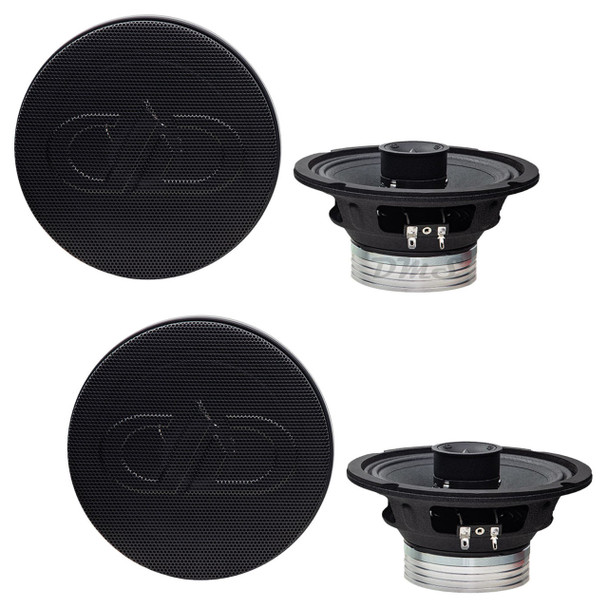

DD Audio VO-Series 6.5 Inch 500W 4 Ohm NEO Pro Coaxial Speakers | VO-XN306 (4 Pack)

DD Audio VO-Series 6.5 Inch 500W 4 Ohm NEO Pro Coaxial Speakers | VO-XN306 (4 Pack)

The VO-XN300s continue the tradition of blending the latest in Hi-Fidelity technology with the qualities of high-end Pro Audio to produce a tonally smooth, low distortion frequency response over a wide bandwidth through an undeniably powerful broadcast to give listeners near and far a gratifying interaction with loud and clear audio. These 6.5″ combination drivers can cover frequencies as low as 85Hz all the way up to 20kHz, making system designs easy. They also feature key upgrades over the VO-XNa drivers. The Neodymium motor was made larger to accommodate the new voice coil, which increased to 1.8” for a 25% greater total area, resulting in substantially improved power handling and output capability. This stronger motor is complemented by the introduction of the 4th Gen B1 compression driver, made with a smaller all aluminum body.

They also include exclusive adventure ready design features, like sealed voice coil gaps and water resistant, synthetic resin cones made for unyielding rigidity and ultra-light moving mass, all to overcome the harsh conditions and environmental noise you’ll encounter on road and off.

Specs:

• Speaker Size (In): 6.5

• Tweeter Size (In): 1

• Watts RMS: 250

• Watts Peak: 500

• Impedance: S4

• VCD (In): 1.8

• Frequency Response (Hz): 85 - 22K

• Fs (Hz) 85

• Qms: 1.66

• Qes: 0.421

• Qts: 0.336

• Vas (liters): 5.672

• dB SPL: 95

• Tweeter dB SPL: 104

• Mounting Diameter (In): 5.75

• Mounting Diameter (MM): 146

• Mounting Depth (In): 2.75

• Mounting Depth (MM): 70

Features:

• Dual Magnet Neo Motor Design w/ Dual Shorting Rings
• 25% Increase In Voice Coil Size
• Machined Aluminum Front and Rear Motor Removable Heatsinks
• Kapton Voice Coil Former for Decreased Inductance
• DD Tooled 4th Gen Neo Magnet Compression Tweeter
• Moisture Resistant Polymer Infused Curvilinear Cone
• Rubber Voice Coil Gap Cover
• CCA Voice Coil Wire for Increased Efficiency
• Removable Rear Heatsink for Increased Mountability
• Bi-Ampable
