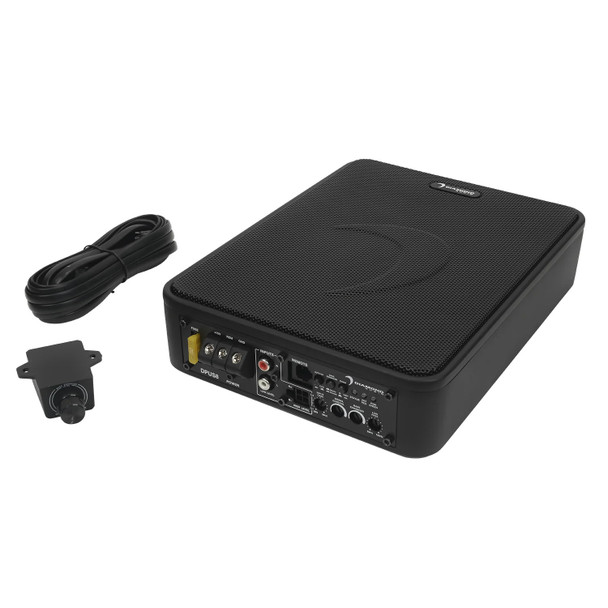

Diamond Audio DPUS8 | 8 Inch 250W Max Powered Slim Subwoofer System

Diamond Audio DPUS8 | 8 Inch 250W Max Powered Slim Subwoofer System

The DPUS8, an addition to Diamond’s line of under-seat enclosures, boasts a range of unique features designed to simplify installation, address audio issues from OEM vehicle’s audio signal, and alleviate space concerns. For OEM integration, the DPUS8 offers 20V line-level inputs and auto turn-on circuits. To com-bat poor OEM signal quality, the DPUS8 features dual bass controls, one for level and the second with Diamonds’ exclusive bass enhancement circuit. The DPUS8 also includes the standard low pass and subsonic filters and phase adjustments.

Notably, the enclosure/amplifier housing is remarkably compact, ensuring it fits a wide range of applications while still delivering impressive output from the onboard 8” subwoofer and 100WRMS amplifier

Specs:

• Power: 100WRMS/250W MAX

• Die Cast Aluminum Chassis/Enclosure

• Bass Enhancer: 0dB-16dB

• 20v Line Level Inputs

• Included: Remote Subwoofer Level Control

• Auto Turn On: On/Of

• P.W.M Power supply

• Adjustable Input Sensitivity

• Low Level and High-Level input

• Sub Sonic Filter: 20Hz (fixed)

• LPF: 50Hz-180Hz

• Status LED indicator: Power/Protect

• Thermal Protection Circuit.

• Short Protection Circuit.

• Overload Protection Circuit

• Dimensions: 9.65" x 7.1" x 2.84"

• Owner's Manual
