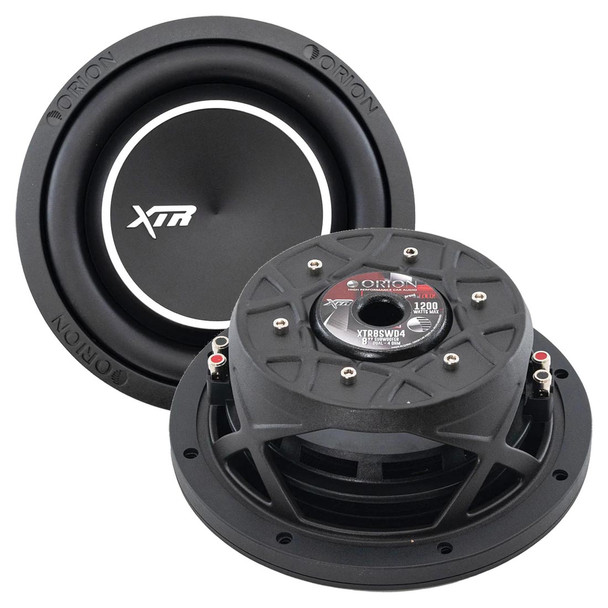

Orion XTR 8 Inch 1200W DVC 4 Ohm Shallow Subwoofer | XTR8SWD4

(1) Orion XTR 8 Inch 1200W DVC 4 Ohm Shallow Subwoofer | XTR8SWD4

The XTR Series XTR8SWD4 from Orion is a standout 8-inch shallow subwoofer, meticulously designed to deliver substantial bass performance without occupying much space. It offers a robust 300W RMS and a maximum power output of 1200W, ensuring your audio experience is both powerful and immersive. This subwoofer features dual 4 ohm voice coils, which provide greater flexibility in wiring configurations and improve the unit’s ability to manage high power levels effectively.

Ideal for installations where space is limited, its shallow mount design allows it to be placed in compact areas such as under seats or in small trunks, making it perfect for vehicles with space constraints. Despite its compact form, the XTR8SWD4 does not sacrifice sound quality. It ensures deep, resonant bass that enhances any car audio system.

Orion's commitment to superior build quality is evident in the XTR8SWD4’s construction. It includes a heavy-duty frame and a cone made to endure rigorous bass outputs without distorting. This durable design ensures long-lasting performance, meeting the needs of even the most demanding bass enthusiasts. If you’re looking to upgrade your car’s audio system or constructing a new one, the Orion XTR Series XTR8SWD4 shallow subwoofer is an excellent choice that expertly balances size, power, and sound quality for a truly exceptional listening experience.

Specs:

• MAX Power Handling: 2100W

• RMS Power Handling: 300W

• Impedance: DVC 4 Ohm

• Frequency Range: 40Hz - 300Hz

• Sensitivity: 83 dB

• Outside Diameter: 8.58"

• Mounting Diameter: 7.09"

• Mounting Depth: 2.76"

• Weight (Approx.): 8 lbs.

Features:

• 2.0" Voice Coil

• Dust Cap Material: Polypropylene

• Cone Material: UV Coated Paper / Fiber Blend Cone

• Surround Material: NBR

• Magnet Information: Ceramic

• Exclusive Heavy-Gauge Stamped Steel Basket

• Nickel-Plated Push Terminals

• Shallow Mount Design

• Recommended Sealed Box Size: 0.75 Cubic Feet

Owner's Manual / Spec Sheet
