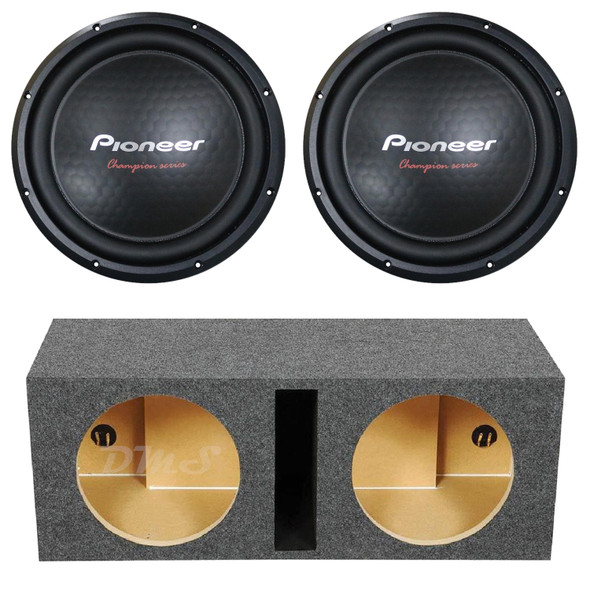

Pioneer Champion 12 Package | Dual 12" 1600W S4 Subwoofers & QPower HD Sealed Box

Pioneer Champion 12 Package | Dual 12" 1600W S4 Subwoofers & QPower HD Sealed Box

The Champion Series subwoofers have evolved from Pioneer’s award winning “SPL Champion Edition” lineup, known for its deep and powerful bass production. The TS-A301S4 12” single-voice coil component subwoofer features a re-designed large and powerful motor assembly for improved efficiency and sensitivity. The subwoofers basket was optimized using a reinforced structure design for added strength and reduced vibration to deliver excellent sound quality. This subwoofer has continuous power of 500 watts with a maximum peak of 1,600 watts. It features an advanced 2-piece durable Honeycomb IMPP™ composite cone structure plus a rigid drive cone to deliver high output levels with reduced distortion.

Also Known As: TSA301S4 / TS-A301-S4 / TSA-301S4

Subwoofer Details (each):

• MAX Power Handling: 1600W

• RMS Power Handling: 500W

• Impedance: SVC 4 Ohm

• Frequency Range: 20Hz - 1.6KHz

• Mounting Diameter: 11.125”

• Mounting Depth: 6.125"

• Subwoofer Weight: 14.4 lbs.

• Honeycomb IMPP Composite Cone Structure

• Dual Layer Fiber Reinforced Elastic Polymer Surround

• 90oz Ferrite Magnet Structure

• Vented Pole Yoke

• Reinforced Stamped Steel Basket

• Spring Loaded Wire Terminals

Box Details:

• 3/4" MDF Construction

• Machine Precision Cut Mounting Holes

• Top of The Line Glue For Extra Durable Adhesion

• Spring Loaded Speaker Terminals

• Type of Enclosure: Dual Sealed

• Enclosure Sub Size: Dual 12"

• Dimensions: 32" L x 12.75" W x 13" H

• Top and Bottom Depth: 12.75"

• Internal Volume: 1.12 Cubic Feet Per Sub

• Box Weight: 36 lbs.

Owner's Manual / Spec Sheet
