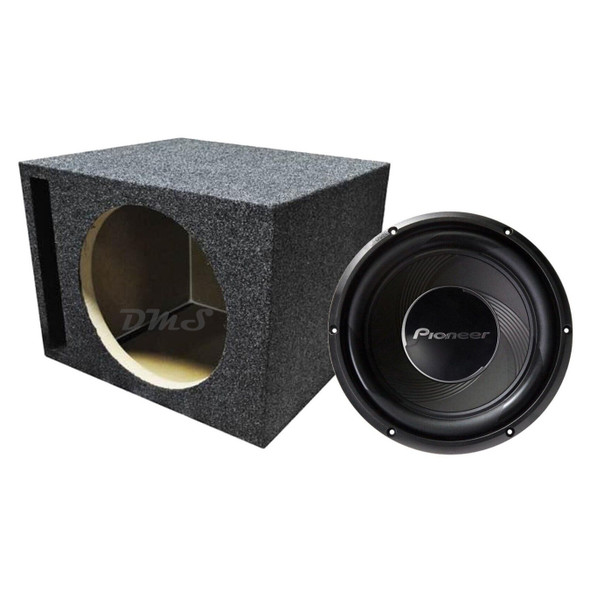

Pioneer Champion TS-A301S4 Package | 12" 1600W S4 Subwoofer & QPower HD Ported Box

Pioneer Champion TS-A301S4 Package | 12 Inch 1600W SVC 4 Ohm Subwoofer & QPower HD Ported Box

The Champion Series subwoofers have evolved from Pioneer’s award winning “SPL Champion Edition” lineup, known for its deep and powerful bass production. The TS-A301S4 12” single-voice coil component subwoofer features a re-designed large and powerful motor assembly for improved efficiency and sensitivity. The subwoofers basket was optimized using a reinforced structure design for added strength and reduced vibration to deliver excellent sound quality. This subwoofer has continuous power of 500 watts with a maximum peak of 1,600 watts. It features an advanced 2-piece durable Honeycomb IMPP™ composite cone structure plus a rigid drive cone to deliver high output levels with reduced distortion.

Subwoofer Details:

• MAX Power Handling: 1600W

• RMS Power Handling: 500W

• Impedance: SVC 4 Ohm

• Frequency Range: 20Hz - 1.6KHz

• Mounting Diameter: 11.125”

• Mounting Depth: 6.125"

• Weight: 14.4 lbs.

• Honeycomb IMPP Composite Cone Structure

• Dual Layer Fiber Reinforced Elastic Polymer Surround

• 90oz Ferrite Magnet Structure

• Vented Pole Yoke

• Reinforced Stamped Steel Basket

• Spring Loaded Wire Terminals

Box Details:

• Type of Enclosure: Vented

• Enclosure Sub Size: 12"

• Dimensions: 18" L x 16" D x 13.25" H

• Top and Bottom Depth: 16"

• Max Mounting Depth: 14"

• Tuning Frequency: 37Hz

• Internal Box Volume: 1.5 Cubic Feet

• 3/4" MDF Construction w/Extra Thick Front Baffle

• Machine Precision Cut Mounting Hole

• Top of The Line Glue For Extra Durable Adhesion

• High Quality Spring Loaded Terminals

• Box Weight: 28 lbs.

Shop for Subwoofer Amplifiers

Please feel free to send us a message if you have any questions about this package.
