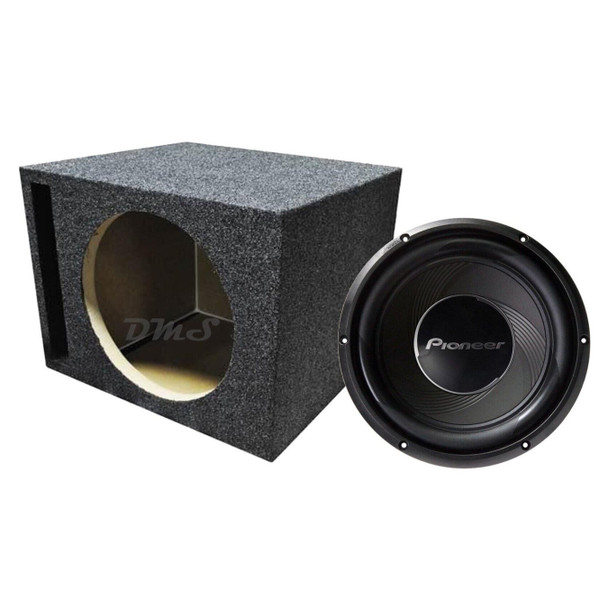

Pioneer TS-A30S4 Package | 12" 1400W S4 Subwoofer & QPower HD Ported Box

Pioneer TS-A30S4 Package | 12 Inch 1400W SVC 4 Ohm Subwoofer & QPower HD Ported Box

Upgrade to high performance with the Pioneer A-series sound design for seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music. A subwoofer motor structure consists of the voice coil and magnet assembly. Increasing the diameter and length of the voice coil provides greater control of the woofer cone and higher power handling. To take full advantage, however, the magnet must also be increased, both in magnetic power and physical size. This A-series subwoofer cone has a blend of Aramid fibers interlaced with Polypropylene during the injection molding process to meet Pioneer's standards for sensitivity, low distortion, rigidity and strength.

Subwoofer Details:

• MAX Power Handling: 1400W

• RMS Power Handling: 400W

• Impedance: SVC 4 Ohm

• Frequency Range: 22Hz - 1.6KHz

• Sensitivity: 87 dB

• Mounting Diameter: 11.125”

• Mounting Depth: 5.375"

• Subwoofer Weight: 9.7 lbs.

• Dynamic Tornado Cone Design

• Butyl Rubber Surround & Aramid Fiber Spider

• Oversized Ferrite Magnet Structure

• Rigid Stamped Steel Basket Design

• Spring Loaded Terminal Connections

Box Details:

• Type of Enclosure: Vented

• Enclosure Sub Size: 12"

• Dimensions: 18" L x 16" D x 13.25" H

• Top and Bottom Depth: 16"

• Maximum Mounting Depth: 14"

• Tuning Frequency: 37Hz

• Internal Box Volume: 1.5 Cubic Feet

• 3/4" MDF Construction w/Extra Thick Front Baffle

• Machine Precision Cut Mounting Hole

• Top of The Line Glue For Extra Durable Adhesion

• High Quality Spring Loaded Terminals

• Box Weight: 28 lbs.

Shop for Subwoofer Amplifiers

Please feel free to send us a message if you have any questions about this package.
