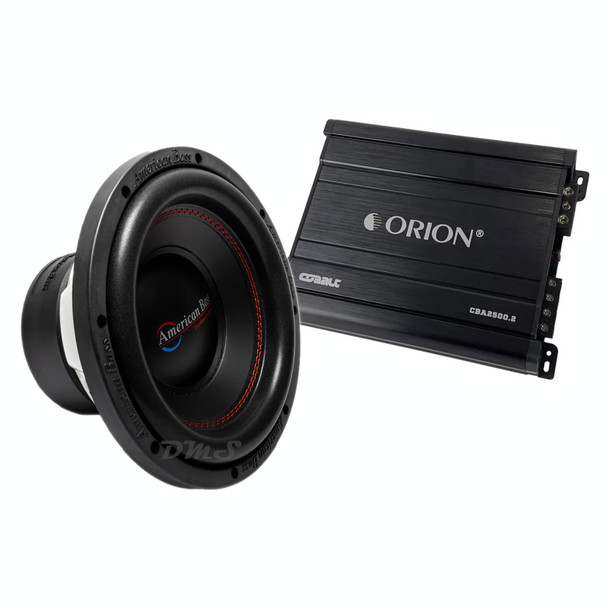

American Bass DX 10 Package | 10" 600W S4 Subwoofer & Orion CBA2500.2 Amplifier

Sub & Amp Package Deal

(1) American Bass DX 10 Inch 600W SVC 4 Ohm Subwoofer | DX104

(1) Orion Cobalt CBA2500.2 | 2500W Max 2 Channel Full Range Amplifier

*This setup is intended to run at 4 Ohms Bridged

Get ready to shake the ground with American Bass's DX Series Subwoofer! This awesome entry level subwoofer brings unrivaled performance and features that can satisfy any bass enthusiast. Enjoy reliable power and deep, pounding bass tones day after day that will truly blow you away!

The DX series is American Bass's best-selling subwoofer for a reason: it packs a serious punch and never disappoints. Optimized for everyday use, this plug-and-play unit promises extreme lows with no surprises. So if you need quality, high-performance sub look no further than the DX Series from American Bass.

Also Known As: DX-10 / DX10 / DX-104 / DX10-S4 / DX10S4

Subwoofer Details:

• MAX Power Handling: 600W
• RMS Power Handling: 300W
• Impedance: SVC 4 Ohms
• Sensitivity: 86.3 dB
• Mounting Diameter: 9.2"
• Mounting Depth: 5.5"
• Weight: 11.5 lbs.
• 90oz. Magnet Structure
• 2.0" Diameter Voice Coil
• Non Pressed Paper Cone
• Rubber Magnet Boot
• 1.5" Multi-Layer Foam Surround
• White Powder Coated Basket
• Dual Black Spiders
• Thick Hi-Current Tinsel Woven on Spider
• Chrome Push Terminals
• Recommended Ported Box Size: 1.25 Cubic Feet
• Owner's Manual / Spec Sheet

Amplifier Details:

• 2500W Peak Rating
• 175W RMS X 2 @ 2 Ohms
• 80W RMS X 2 @ 4 Ohms
• 350W RMS X 1 @ 4 Ohms Bridged
• Frequency Response: 10Hz - 30kHz
• High Pass Crossover Continuously Variable: 50 - 1.2kHz
• Low Pass Crossover Continuously Variable: 40 - 250Hz
• Supply Voltage: 10 - 16V
• Input Impedance: 22k Ohm
• Signal to Noise Ratio: >90 dB
• Variable Bass Boost: 0 - 12dB
• Variable Input Level Control: 0.2V - 6.0V
• Fuse Rating: 40A (1 x 40A ATC)
• Positive Terminals: 1 x 4 AWG
• Negative Terminals: 1 x 4 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 10 AWG
• Dimensions: 9.41" x 7.09" x 2.13"
• Total Weight (Approx.): 4 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 2-Ohm Stable
• RCA Out Throughput
• 12dB Octave Low-Pass Filter
• Electronic Crossover Network
• Bass Boost Circuit
• Intelligent Power and Protection LED Indicator
• Soft Turn-on/Turn-off
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Shop For Wiring & Batteries

Shop For Subwoofer Boxes

Browse Custom Box Builders

Please feel free to send us a message if you have any questions about this package.
