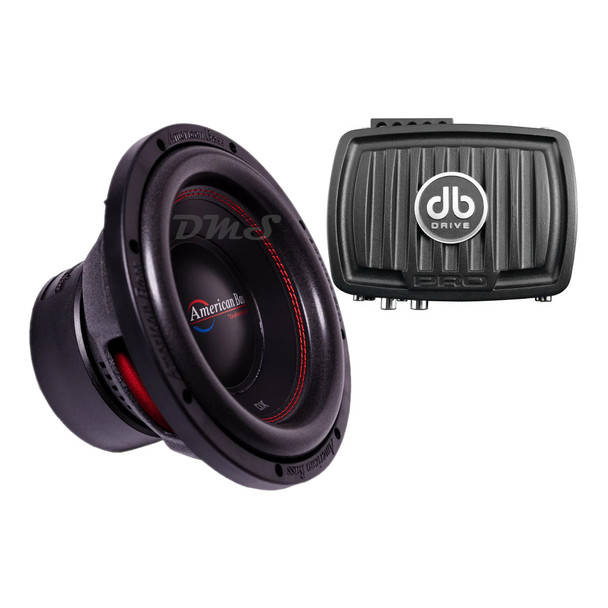

American Bass DX 10 V2 Package | 10" 600W S4 Subwoofer & DB Drive WDXP200.2 Amplifier

Sub & Amp Package Deal

(1) American Bass DX 10 Inch 600W SVC 4 Ohm Subwoofer | DX104V2

(1) DB Drive 300W 2 Channel Full Range Amplifier | WDX P200.2

*This setup is intended to run at 4 Ohms Bridged

Get ready to shake the ground with American Bass's DX Series Subwoofer! This awesome entry level subwoofer brings unrivaled performance and features that can satisfy any bass enthusiast. Enjoy reliable power and deep, pounding bass tones day after day that will truly blow you away!

The DX series is American Bass's best-selling subwoofer for a reason: it packs a serious punch and never disappoints. Optimized for everyday use, this plug-and-play unit promises extreme lows with no surprises. So if you need quality, high-performance sub look no further than the DX Series from American Bass.

Also Known As: DX-10 / DX10 / DX-104 / DX10-S4 / DX10S4 / DX10V2 / DX-10-V2 / DX104V2

Subwoofer Details:

• MAX Power Handling: 600W
• RMS Power Handling: 300W
• Impedance: SVC 4 Ohms
• Frequency Range: 30-500Hz
• Sensitivity: 83.7 dB
• Mounting Diameter: 9.24"
• Mounting Depth: 5.52"
• Weight: 12 lbs.
• 2.0" Diameter High-Temp Voice Coil
• Powder Coated Stamped Steel Basket w/ Perimeter Vents For Better Cooling
• Double Stacked 90oz. High-Energy Magnet Structure
• Rubber Magnet Boot & Trim Ring
• Non-Pressed Rigid Paper Cone
• Over-Sized 1.4" 3-Layer Foam Surround
• Thick Hi-Current Tinsel Woven on Spider
• Chrome Push Terminals
• Recommended Ported Box Size: 1.25 Cubic Feet

Amplifier Details:

• Rated Power @ 14.4 Volts
• 2 x 100 Watts @ 4 Ohm
• 2 x 150 Watts @ 2 Ohm
• 1 x 300 Watts @ 4 Ohm Bridged
• Minimum Working Impedance: 2 Ohm Stereo or 4 Ohm Bridged
• Features Low Level RCA Inputs
• Fixed High Pass Filter: 150Hz
• Fixed Low Pass Filter: 150Hz
• Dimensions: 5" x 3" x 1.89"
• Weight (Approx.): 2 lbs.
• Conformal PCB Coating: The internal circuit boards are specially coated to repel moisture, dust, and coastal humidity.
• CHM (Collective Heat Management): An intelligent internal cooling profile helps prevent thermal shutdown in
unventilated fairings or compartments.
• ACT (Adaptive Crossover Technology): Includes fixed 150Hz High-Pass (HPF) and Low-Pass (LPF) crossover filters for
instant speaker optimization.
• APC (Audio Protection Circuit): Guards the hardware against electrical shorts, clipping, and overloads.
• Wiring Interface: Employs rugged 10-gauge wire inputs for steady current flow.
