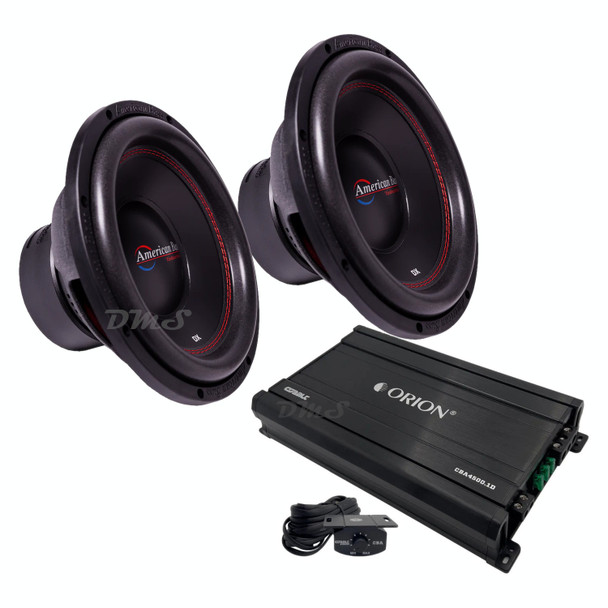

American Bass DX 12 V2 Package | Dual 12" 600W S4 Subwoofers & Orion CBA4500.1D Amplifier

Sub & Amp Package Deal

(2) American Bass DX 12 Inch 600W SVC 4 Ohm Subwoofers | DX124V2

(1) Orion Cobalt CBA4500.1D | 4500W Max Monoblock Subwoofer Amplifier

*This setup is intended to run at 2 Ohms

Get ready to shake the ground with American Bass's DX Series V2 Subwoofer! This awesome entry level subwoofer brings unrivaled performance and features that can satisfy any bass enthusiast. Enjoy reliable power and deep, pounding bass tones day after day that will truly blow you away!

The DX series V2 is a best-selling subwoofer for a reason: it packs a serious punch and never disappoints. Optimized for everyday use, this plug-and-play unit promises extreme lows with no surprises. So if you need quality, high-performance sub look no further than the DX Series V2 from American Bass.

Also Known As: DX12 / DX-12 / DX-124 / DX12V2 / DX-12-V2 / DX124V2

Sub Details (each):

• MAX Power Handling: 600W
• RMS Power Handling: 300W
• Impedance: SVC 4 Ohm
• Frequency Range: 30-500Hz
• Sensitivity: 86 dB
• Mounting Diameter: 11.1"
• Mounting Depth: 6.06"
• Weight: 14 lbs.
• 2.0" Diameter High-Temp Voice Coil
• Powder Coated Stamped Steel Basket w/ Perimeter Vents For Better Cooling
• Double Stacked 90oz. High-Energy Magnet Structure
• Rubber Magnet Boot & Trim Ring
• Non-Pressed Rigid Paper Cone
• Over-Sized 1.4" 3-Layer Foam Surround
• Thick Hi-Current Tinsel Woven on Spider
• Chrome Push Terminals
• Recommended Ported Box Size: 1.75 - 2.0 Cubic Feet
• Owner's Manual / Spec Sheet

Amplifier Details:

• 4500W Peak Rating
• 1200W RMS X 1 @ 1 Ohm
• 650W RMS X 1 @ 2 Ohms
• 400W RMS X 1 @ 4 Ohms
• Frequency Response: 10Hz - 250Hz
• Subsonic: 15 - 50Hz
• Low Pass Crossover Continuously Variable: 40 - 250Hz
• Supply Voltage: 10 - 16V
• Input Impedance: 22k Ohm
• Signal to Noise Ratio: >90 dB
• Phase Shift: 0/180 Degrees
• Variable Bass Boost: 0 - 12dB
• Variable Input Level Control: 0.2V - 6.0V
• Fuse Rating: 105A (3 x 35A ATC)
• Positive Terminals: 1 x 4 AWG
• Negative Terminals: 1 x 4 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 10 AWG
• Dimensions: 12.56" x 7.09" x 2.13"
• Weight (Approx.): 6 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 1-Ohm Stable
• Remote Gain Controller Included
• RCA Out Throughput
• 12dB Octave Low-Pass Filter
• Electronic Crossover Network
• Bass Boost Circuit
• Intelligent Power and Protection LED Indicator
• Soft Turn-on/Turn-off
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, Under & Over Voltage
