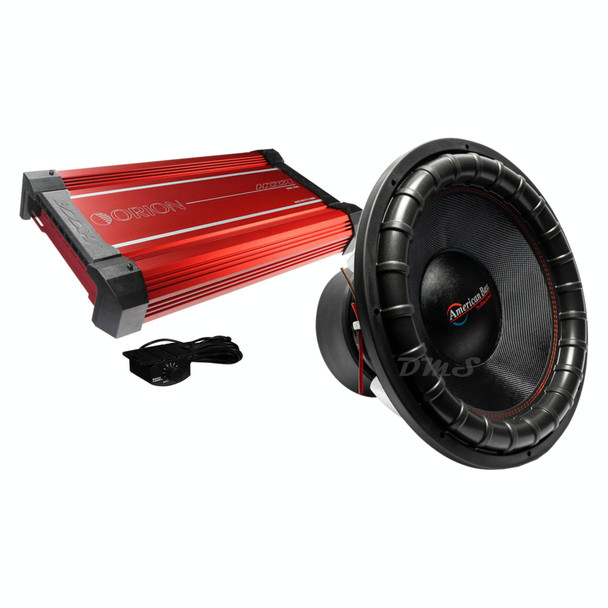

American Bass Godfather 18 Package | 18" 6000W D2 Subwoofer & Orion HCCA3000.1DSPLX Amplifier

Sub & Amp Package Deal

(1) American Bass Godfather 18 Inch 6000W DVC 2 Ohm Subwoofer | GF1822

(1) Orion HCCA 3000W RMS Monoblock Subwoofer Amplifier | HCCA3000.1DSPLX

*This setup is intended to run at 1 Ohm

The American Bass Godfather Series is not just any ordinary subwoofer - it is a work of art, crafted with the utmost care and attention to detail. These speakers were built for those who demand the highest SPL, and are more than up to the task with their high power handling and air-cooled bottom plate. But that's not all - the Godfather Series boasts a 400oz magnet, American-made 4” flat wire wound high temp coil, multi spider system, and a double stitched cone for ultimate durability. Trust me when I say that these speakers will not disappoint.

Also Known As: GF-1822 / GF18D2 / GF-18D2 / GF-18-D2 / GODFATHER-18-D2

Subwoofer Details:

• MAX Power Handling: 6000W
• RMS Power Handing: 3000W
• Impedance: DVC 2 Ohm
• Sensitivity: 87.8 dB
• Mounting Diameter: 16.54"
• Mounting Depth: 11.22"
• Weight: 71 lbs.
• 4.0" Diameter High-Temp 4-Layer Flat Aluminum Wire Voice Coil On Aluminum Bobbin
• Heavy Duty Die Cast Basket With Black Powder Coat Finish
• Kevlar Fiber Woven Non-Press Paper Composite Cone
• High-Roll High Density Foam Surround With Silver Stitching
• 4 Piece Double Black Poly-Cotton Spiders With Mirror-Image Layout Spaced By Spider Ring.
• Double Thick Tensile Stitched On Spider
• Triple Stacked 400oz. High-Energy Magnet Structure
• 10 Gauge Copper Cable Direct Connection Leads
• Rubber Gasket & Rubber Magnet Boot
• Recommended Ported Box Size: 5.5 - 6.5 Cubic Feet
• Owner's Manual / Spec Sheet

Amplifier Details:

• 3000W RMS X 1 @ 1 Ohm
• 2100W RMS X 1 @ 2 Ohms
• 1350W RMS X 1 @ 4 Ohms
• Frequency Response: 10Hz - 300Hz
• Low Pass Crossover: 40Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >88%
• Damping Factor: >200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Input Impedance: 24K Ohms
• Phase Shift: 0 - 180
• Bass Boost: 0-18dB Variable
• Subsonic Filter: 10 - 40Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuse Rating: 350A External (not included)
• Positive Terminals: 3 x 0 AWG
• Negative Terminals: 3 x 0 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 4 AWG
• Dimensions: 18.89" x 11.89" x 3.15"
• Weight (Approx.): 21.5 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12/24dB / Octave Low-Pass Filter
• Remote Gain Controller Included
• Low-Level and High-Level Balanced Input
• Infrasonic Filter
• Concealed Controls Under Locking Top Panel Orion Patented ESP®
• Digitally Programmed Input Voltage for Fast, Accurate System Setup
• Input Sensitivity Lock-Out Mode Lock the Tweekers Out!
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC Offset, Short Protection, Under & Over Voltage

Shop For Wiring & Batteries

Browse Custom Box Builders

Please feel free to send us a message if you have any questions about this package.
