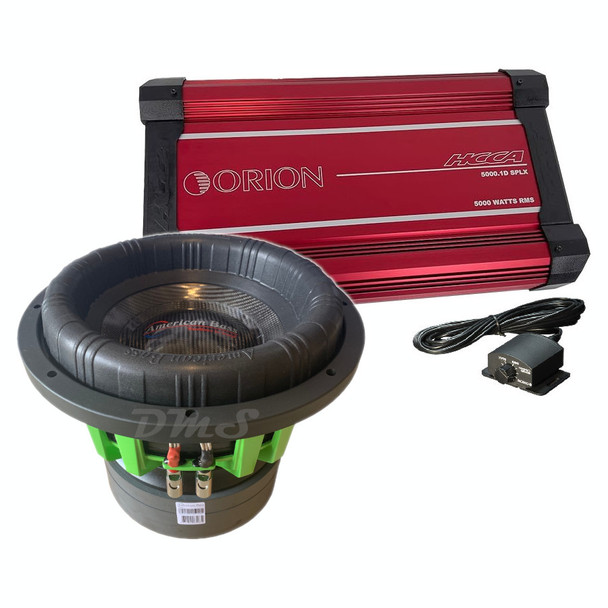

American Bass GODZILLA 12 Package | 12" 12,000W D2 Subwoofer & Orion HCCA5000.1DSPLX Amplifier

Sub & Amp Package Deal

(1) American Bass GODZILLA 12 Inch 12,000W DVC 2 Ohm Subwoofer | GODZILLA1222

(1) Orion HCCA 5000W RMS Monoblock Subwoofer Amplifier | HCCA5000.1DSPLX

*This setup is intended to run at 1 Ohm

Unleash the beast of bass with American Bass USA's Godzilla Subwoofers, where monstrous power meets earth-shattering performance. Why should you run the Godzilla 12 Dual 2 Ohm subwoofer? --> Encased in a green textured diecast basket with a pure carbon fiber cone, these subs roar to life, delivering clarity and depth that vibrates your soul. With a triple-stack 425 Oz magnet and a 3.5" high-temp voice coil, they're built to handle the heat of your fiercest tracks. Double silicone spiders and 4GA copper push terminals ensure precision and endurance, making every beat a testament to the might of Godzilla. Get ready to experience bass that's not just heard, but felt, as if the king of monsters himself is orchestrating your soundtrack.

Also Known As: GODZILLA12D2 / GODZILLA-12D2 / GODZILLA12-D2 / GODZILLA-12-D2 / GODZILLA-1222

Subwoofer Details:

• MAX Power Handling: 12,000W
• RMS Power Handing: 4700W
• Impedance: DVC 2 Ohm
• Sensitivity: 81.7 dB
• Outside Diameter: 12.99"
• Mounting Diameter: 11.34"
• Mounting Depth: 9.65"
• Weight: 71 lbs.
• Green Textured Die-Cast Basket
• Pure Carbon Cone w/ Foam Surround
• Triple-Stack High Energy 425oz Magnet
• 3.5" 4-Layer High-Temp Flat Wire Voice Coil
• Double Black Spiders
• 4GA Copper Push Terminals
• Recommended Ported Box Size: 2.75 Cubic Feet

Amplifier Details

• 5000W RMS X 1 @ 1 Ohm
• 3600W RMS X 1 @ 2 Ohms
• 2300W RMS X 1 @ 4 Ohms
• Frequency Response: 15Hz - 250Hz
• Low Pass Crossover: 40Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >88%
• Damping Factor: 200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Input Impedance: 24K Ohms
• Phase Shift: 0 - 180
• Variable Bass Boost: 0-18dB
• Subsonic Filter: 10 - 40Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuse Rating: 500A External (not included)
• Positive Terminals: 3 x 0 AWG
• Negative Terminals: 3 x 0 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 4 AWG
• Dimensions: 20.47" x 11.89" x 3.15"
• Weight (Approx.): 27 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12/24dB / Octave Low-Pass Filter
• Remote Gain Controller Included
• Low-Level and High-Level Balanced Input
• Infrasonic Filter
• Concealed Controls Under Locking Top Panel Orion Patented ESP®
• Digitally Programmed Input Voltage for Fast, Accurate System Setup
• Input Sensitivity Lock-Out Mode Lock the Tweekers Out!
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, Under & Over Voltage
