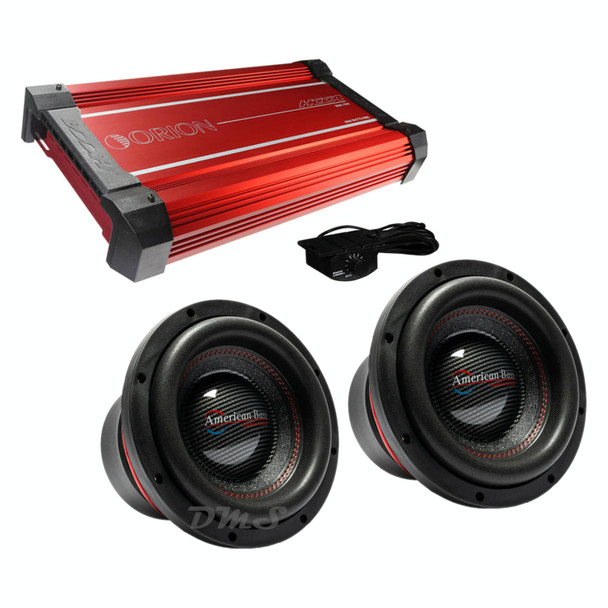

American Bass HAWK 10 Package | Dual 10" 3000W D4 Subwoofers & Orion HCCA3000.1DSPLX Amplifier

Sub & Amp Package Deal

(2) American Bass HAWK 10 Inch 3000W DVC 4 Ohm Subwoofers | HAWK1044

(1) Orion HCCA 3000W RMS Monoblock Subwoofer Amplifier | HCCA3000.1DSPLX

*This setup is intended to run at 1 Ohm

Introducing the American Bass Hawk subwoofer – the ultimate answer for car audio enthusiasts and SPL competitors! This isn’t just your average subwoofer; it’s a powerhouse with revolutionary features. For example, the Hawk's heat sync at the back of the magnet allows you to throw down those bass drops without having to worry about overheating your coil or distorting your sound quality. Throw in a 200 oz magnet, foam surround, and spider suspension, and you have yourself an all-star subwoofer that can put out up to 3000 watts of max power. With American Bass Hawk, now you can sound big and powerful without your subwoofer breaking a sweat – literally! So if you want to beat the competition (and your neighbors!) then hop into a ride and rock out with American Bass Hawk!

Also Known As: HAWK-1044 / HAWK-10D4 / HAWK10-D4 / HAWK-10-D4

Sub Details (each):

• MAX Power Handling: 3000W
• RMS Power Handing: 1500W
• Impedance: DVC 4 Ohm
• Sensitivity: 85.6 dB
• Mounting Diameter: 9.25"
• Mounting Depth: 7.48"
• Weight: 38 lbs.
• Triple Stacked 80oz Strontium Magnets (240oz Total)
• 3.0" 4-Layer Copper Wire Voice Coil On Aluminum Bobbin
• 4 Piece Poly-Cotton Spiders With Mirror Image Layout Spaced By Spider Ring
• Double Thick Tensile Stitched On Spider
• Advanced T-Plate Cooling Technology
• 10Ga. Direct Wired Leads
• Kevlar Fiber Added Non-Press Paper Cone With Texture Finish
• High Roll Surround w/ Red Stitching
• Heavy Duty Cast Aluminum Red Powder Coated Basket
• Recommended Ported Box Size: 1.70 Cubic Feet
• Owner's Manual / Spec Sheet

Amplifier Details:

• 3000W RMS X 1 @ 1 Ohm
• 2100W RMS X 1 @ 2 Ohms
• 1350W RMS X 1 @ 4 Ohms
• Frequency Response: 10Hz - 300Hz
• Low Pass Crossover: 40Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >88%
• Damping Factor: >200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Input Impedance: 24K Ohms
• Phase Shift: 0 - 180
• Bass Boost: 0-18dB Variable
• Subsonic Filter: 10 - 40Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuse Rating: 350A External (not included)
• Positive Terminals: 3 x 0 AWG
• Negative Terminals: 3 x 0 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 4 AWG
• Dimensions: 18.89" x 11.89" x 3.15"
• Weight (Approx.): 21.5 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12/24dB / Octave Low-Pass Filter
• Remote Gain Controller Included
• Low-Level and High-Level Balanced Input
• Infrasonic Filter
• Concealed Controls Under Locking Top Panel Orion Patented ESP®
• Digitally Programmed Input Voltage for Fast, Accurate System Setup
• Input Sensitivity Lock-Out Mode Lock the Tweekers Out!
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC Offset, Short Protection, Under & Over Voltage
