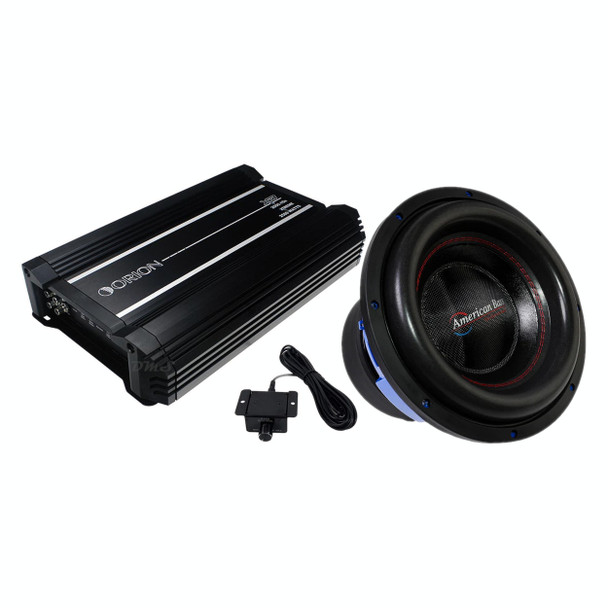

American Bass HD VELOCITY 12 Package | 12" 4400W D2 Subwoofer & Orion XTR2500.1DZ Amplifier

Sub & Amp Package Deal

(1) American Bass HD VELOCITY 12 Inch 4400W DVC 2 Ohm Subwoofer | VELOCITY1222

(1) Orion XTR 2500W RMS Monoblock Subwoofer Amplifier | XTR2500.1DZ

*This setup is intended to run at 1 Ohm

Take your car audio to the next level with the American Bass HD-VELOCITY Series Subwoofer. Designed for powerful bass and lasting durability, it features a strong die-cast basket with a stylish blue finish and a carbon-fiber-enhanced cone for clean, deep sound. With a high-temperature 3.0-inch voice coil that handles up to 2200W RMS and 4400W MAX, this subwoofer delivers big sound for any setup. Its precision-engineered components, including multi-layer poly-cotton spiders and a triple-stacked magnet system, ensure efficient performance. The HD-VELOCITY is built to fit your system and take your music to the next level.

Also Known As: VELOCITY-1222 / VELOCITY12D2 / VELOCITY-12-D2 / HD-VELOCITY12-D2

Subwoofer Details:

• MAX Power Handling: 4400W
• RMS Power Handing: 2200W
• Impedance: DVC 2 Ohm
• Sensitivity: 84.2 dB
• Outside Diameter: 12.8"
• Mounting Diameter: 11.34"
• Mounting Depth: 9.02"
• Weight: 50 lbs.
• 3.0" High-Temp 4-Layer Voice Coil
• Die Cast Aluminum Basket w/ Blue Powder Finish
• Carbon Fiber Enhanced Cone
• Oversized High Density Surround
• Multi Layer Poly Cotton Spider Assembly
• Triple Stacked 315oz. High-Energy Magnet Structure
• Uni-Rubber Gasket and Rubber Motor Boot
• Pre-Wired 10 AWG Direct Leads
• Recommended Ported Box Size: 2 - 2.5 Cubic Feet
• Owner's Manual / Spec Sheet

Amplifier Details:

• 2500W RMS X 1 @ 1 Ohm
• 1750W RMS X 1 @ 2 Ohms
• 1250W RMS X 1 @ 4 Ohms
• Frequency Response: 20Hz - 250Hz
• Low Pass Crossover: 30Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >88%
• Damping Factor: 200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Phase Shift: 0 - 180
• Variable Bass Boost: 0-18dB
• Subsonic Filter: Off / 25Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuses Rating: 250A External (not included)
• Positive Terminals: 1 x 0 AWG
• Negative Terminals: 1 x 0 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 4 AWG
• Dimensions: 14.17" x 9.25" x 2.75"
• Weight (Approx.): 12.65 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12dB Octave Low-Pass Filter
• Remote Gain Controller Included
• Electronic Crossover Network
• Bass Boost Circuit
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, Under & Over Voltage

Shop For Wiring & Batteries

Shop For Subwoofer Boxes

Browse Custom Box Builders

Please feel free to send us a message if you have any questions about this package.
