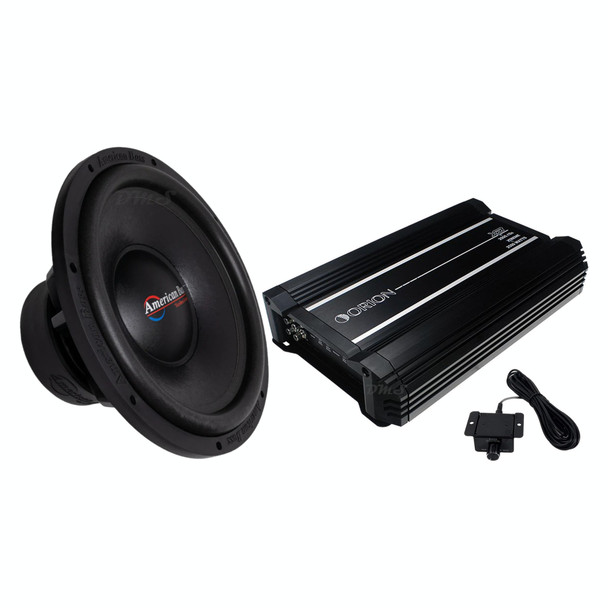

American Bass TITAN 15 Package | 15" 3000W D4 Subwoofer & Orion XTR2500.1DZ Amplifier

Sub & Amp Package Deal

(1) American Bass TITAN 15 Inch 3000W DVC 4 Ohm Subwoofer | TITAN-1544

(1) Orion XTR 2500W RMS Monoblock Subwoofer Amplifier | XTR2500.1DZ

*This setup is intended to run at 2 Ohms

Introducing the American Bass Titan subwoofer: the subwoofers that hits hard without hitting your wallet. If you're an audiophile looking to bump your car audio system up a few notches with big beats, then you've found the right subwoofer. Boasting a 3" voice coil, 195 oz magnet, and 1500 watts RMS, this powerful music-maker is built for performance on any budget. Its 3000 Max power level is designed to make no less than Zeus himself tremble with admiration at your sound system's strength. Unleash the power of American Bass Titan's thunderous low-end sound - upgrade and save today!

American Bass 15" Subwoofer TITAN 1544 Dual 4 Ohm American Bass has designed this TITAN-1544 subwoofer with a white powder finish heavy-duty stamped basket with perimeter vents for better voice coil cooling. The design of the American Bass subwoofer offers a 3 Layer Foam Surrounded, Kevlar Fiber Enforced Non-Pressed paper cone, and hi-temp 4 ohm 4 layer voice coil with Nomex Protection. Make your system stand out from the rest.

Also Known As: TITAN1544 / TITAN15D4 / TITAN-15D4 / TITAN-15-D4

Subwoofer Details:

• MAX Power Handling: 3000W
• RMS Power Handing: 1500W
• Impedance: DVC 4 Ohm
• Sensitivity: 87.9 dB
• Mounting Diameter: 13.97"
• Mounting Depth: 7.63"
• Weight: 31 lbs.
• 3.0" Diameter High-Temp 4-Layer Voice Coil
• 12-Spoke Cast Aluminum Basket
• Kevlar Fiber Enforced Non-Pressed Paper Cone
• Over-Sized 1.40" 3-Layer High Density Foam Surround
• Double Stacked 195oz. Magnet Assembly
• Mirror Image Double Conex Spider Suspension
• Perimeter Voice Coil Cooling Vent Design
• Chrome Spring Loaded Wire Terminals
• Durable Rubber Gasket & Magnet Boot
• Recommended Ported Box Size: 2.75 - 3.0 Cubic Feet
• Owner's Manual / Spec Sheet

Amplifier Details:

• 2500W RMS X 1 @ 1 Ohm
• 1750W RMS X 1 @ 2 Ohms
• 1250W RMS X 1 @ 4 Ohms
• Frequency Response: 20Hz - 250Hz
• Low Pass Crossover: 30Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >88%
• Damping Factor: 200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Phase Shift: 0 - 180
• Variable Bass Boost: 0-18dB
• Subsonic Filter: Off / 25Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuses Rating: 250A External (not included)
• Positive Terminals: 1 x 0 AWG
• Negative Terminals: 1 x 0 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 4 AWG
• Dimensions: 14.17" x 9.25" x 2.75"
• Weight (Approx.): 12.65 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12dB Octave Low-Pass Filter
• Remote Gain Controller Included
• Electronic Crossover Network
• Bass Boost Circuit
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, Under & Over Voltage
