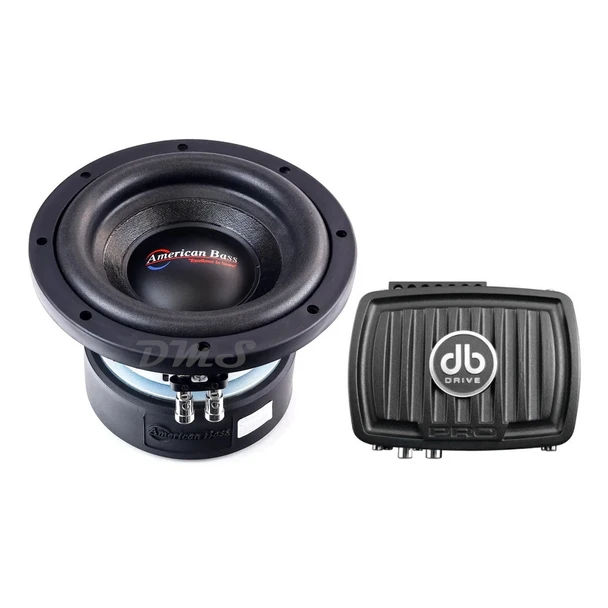

American Bass XD 8 Package | 8" 900W D4 Subwoofer & DB Drive WDX P400.1D Amplifier

Sub & Amp Package Deal

(1) American Bass XD 8 Inch 900W DVC 4 Ohm Subwoofer | XD844

(1) DB Drive WDX 425W Monoblock Subwoofer Amplifier | WDX P400.1D

*This setup is intended to run at 2 Ohms

Ready to add some thunder to your ride? The XD Series subwoofer from American Bass is here to help! With its high-grade design and tight bass response, this subwoofer delivers plenty of clarity and depth to your car's audio system. Plus, with its even power output and fan-favorite status of best-selling subwoofers, you can count on the XD Series to provide an all-around excellent audio experience that's sure to please most car audio enthusiasts. So why wait? Upgrade your car's audio system today with the powerful and versatile XD Series subwoofer!

Also Known As: XD-844 / XD8D4 / XD-8D4 / XD-8-D4

Subwoofer Details:

• MAX Power Handling: 900W
• RMS Power Handling: 450W
• Impedance: DVC 4 Ohm
• Sensitivity: 87.8 dB
• Mounting Diameter: 7.48"
• Mounting Depth: 5.16"
• Weight: 13 lbs.
• 2.0" Diameter High-Temp Voice Coil
• Non-Pressed Kevlar Fiber Enforced Cone
• High Excursion 1.4" 3-Layer Foam Surround
• 2-Layer Black Conex Spider
• Double-Stacked 90oz. Magnet
• Rubber Gasket & Rubber Magnet Boot
• Spring Loaded Wire Terminals
• Recommended Ported Box Size: 0.75 - 1.0 Cubic Feet
• Owner's Manual / Spec Sheet

Amplifier Details:

• Rated Power @ 14.4 Volts
• 1 x 425 Watts @ 2 Ohm
• 1 x 300 Watts @ 4 Ohm
• Minimum Working Impedance: 2 Ohm
• Features Low Level RCA Inputs
• Crossover Slope: @ 12dB
• Low Pass Filter: 40Hz - 150Hz
• Bass Boost @ 45Hz: 0 - 12dB
• Input Sensitivity: .250Mv - 8.5V
• Signal to Noise Ratio: >101dB
• Dimensions: 5" x 3" x 1.89"
• Weight (Approx.): 2 lbs.
• Conformal PCB Coating: The internal circuit boards are specially coated to repel moisture, dust, and coastal humidity.
• CHM (Collective Heat Management): An intelligent internal cooling profile helps prevent thermal shutdown in unventilated fairings or compartments.
• ACT (Adaptive Crossover Technology): variable Low-Pass (LPF) crossover filter for instant speaker optimization.
• APC (Audio Protection Circuit): Guards the hardware against electrical shorts, clipping, and overloads.
• Wiring Interface: Employs rugged 10-gauge wire inputs for steady current flow.

Shop For Wiring & Batteries

Shop For Subwoofer Boxes

Browse Custom Box Builders

Please feel free to send us a message if you have any questions about this package.
