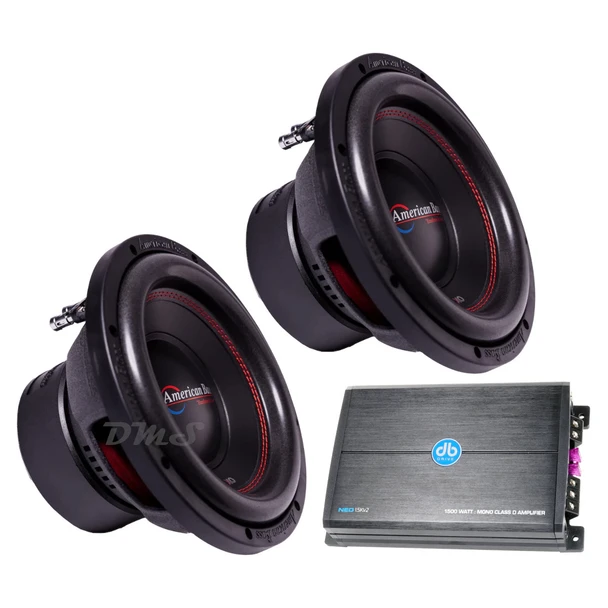

American Bass XO 10 V2 Package | Dual 10" 600W D4 Subwoofers & DB Drive NEO1.5KV2 Amplifier

Sub & Amp Package Deal

(2) American Bass XO 10 Inch 600W DVC 4 Ohm Subwoofers | XO1044 V2

(1) DB Drive NEO-V2 1500W Monoblock Subwoofer Amplifier | NEO1.5KV2

*This setup is intended to run at 1 Ohm

If you’re an audiophile looking to upgrade your sound system, look no further than the American Bass XO series subwoofers. These all-around speakers are a classic American Bass design, proven time and time again to bring superior sound into your home or car audio setup. With incredibly low prices and unbeatable performance, there’s nothing else like it for taking your music experience to the next level. The XO series was designed with dual voice-coils for a deep and powerful bass response that won’t break the bank - compared to other similar subs in its class, this is a great value without sacrificing any sound quality. Make sure to check out the American Bass XO Series V2 Subwoofers before tuning up your system - you won’t be disappointed!

Also Known As: XO-1044 / XO10D4 / XO10-D4 / XO-10D4 / XO-10-D4 / XO1044-V2 / XO-1044-V2

Sub Details (each):

• MAX Power Handling: 600W
• RMS Power Handing: 300W
• Impedance: DVC 4 Ohm
• Frequency Range: 30-500Hz
• Sensitivity: 83.8 dB
• Mounting Diameter: 9.24"
• Mounting Depth: 5.52"
• Weight: 14 lbs.
• 2.0" Diameter High-Temp Voice Coil
• Stamped Steel Basket w/ Black Powder Coat
• Rigid Non-Pressed Paper Cone
• Oversized Double Stitched Rubber Surround
• 90oz. High-Energy Magnet Structure
• Rubber Gasket & Magnet Boot
• Chrome Push Terminals
• Recommended Ported Box Size: 1.25 Cubic Feet
• Owner's Manual / Spec Sheet

Amplifier Details:

• Rated Power @ 14.4 Volts
• 1 x 750 Watts @ 1 Ohm
• 1 x 350 Watts @ 2 Ohm
• Minimum Load Impedance: 1 Ohm
• THD: 0.04%
• Bandwidth (-3 dB): 18Hz ~ 22KHz
• Damping Factor: 126
• S/N ratio (as weighted @ 1 Volt): 99db
• Input Sensitivity: 0.20V ~ 9.0V RMS
• Input: RCA
• Mono Low Pass Filter Slope: 12dB
• Low-Pass Filter Range: 30Hz ~ 150Hz
• Sub-Sonic Filter Range: 15Hz ~ 55Hz
• Sub-Sonic Filter Slope: 12dB
• Dimensions: 7.6" x 5.3" x 1.88"
• Weight: 5.55 lbs.
• Amphibious (Marine) Grade Conformal Coated PCB
• Mono Class D Technology
• 1 Ohm Mono Load Capability
• Audiophile Grade Nickel Plated RCA connectors
• Variable Low-Pass Crossover
• Variable Sub-Sonic Filter
• Remote Dash Bass Control Included
• Double Sided Circuit Tablet
• Owner's Manual / Spec Sheet

Shop For Wiring & Batteries

Shop for Subwoofer Boxes

Browse Custom Box Builders

Please feel free to send us a message if you have any questions about this package.
