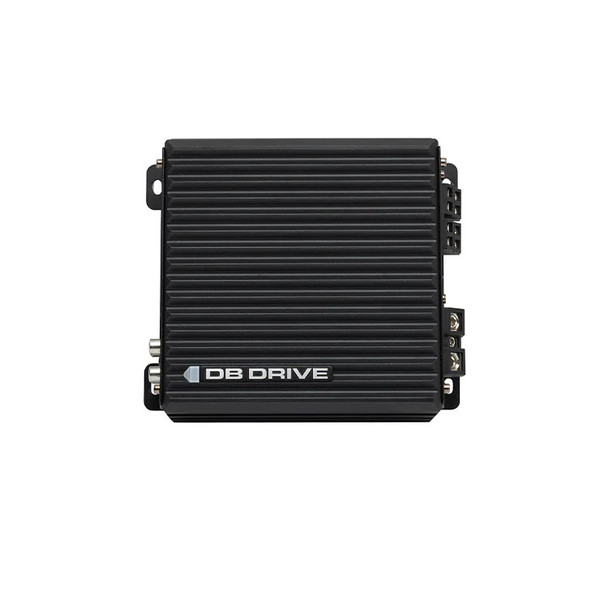

DB Drive DX Series 600W 4 Channel Full Range Amplifier | DX-A4090

DB Drive DX Series 600W 4 Channel Full Range Amplifier | DX-A4090

For premium sound in your vehicle, the DB DRIVE DX-A4090 is your ultimate solution. Designed for both audiophiles and casual listeners, it offers dynamic, high-performance audio. Transform your car into a concert hall with the DB DRIVE DX-A4090 for sound like never before.

Specs:

• Total Dynamic Power Output: 600 Watts

• 4 X 80 Watts @ 4 Ohm

• 4 X 140 Watts @ 2 Ohm

• 2 X 270 Watts @ 4 Ohms Bridged

• Ch 1-2 High Pass Crossover: 20Hz - 5KHz

• Ch 1-2 Low Pass Crossover: 50Hz - 5KHz

• Ch 3-4 High Pass Crossover: 20Hz - 5KHz

• Ch 3-4 Low Pass Crossover: 50Hz - 5KHz

• Crossover Slope @ 12 dB

• Bass Boost @ 45Hz: 0-12dB

• Input Sensitivity: 250Mv - 6V

• Signal to Noise ratio: >92dB

• Frequency Response: 10Hz-22KHz

• Dimensions: 6.56" x 5.23" x 2.01"

Features:

• Class D Technology

• Direct Connect Speaker Terminals

• Large Gauge Power Wire Inputs

• PWM Mosfet Regulated Power Supply

• APC - Audio Protection Circuit

• SESI - Signal Evaluation Status indicator

• CHM - Collective Heat Management

• 2Ω stereo / 4Ω Bridged capability

Owner's Manual / Spec Sheet
