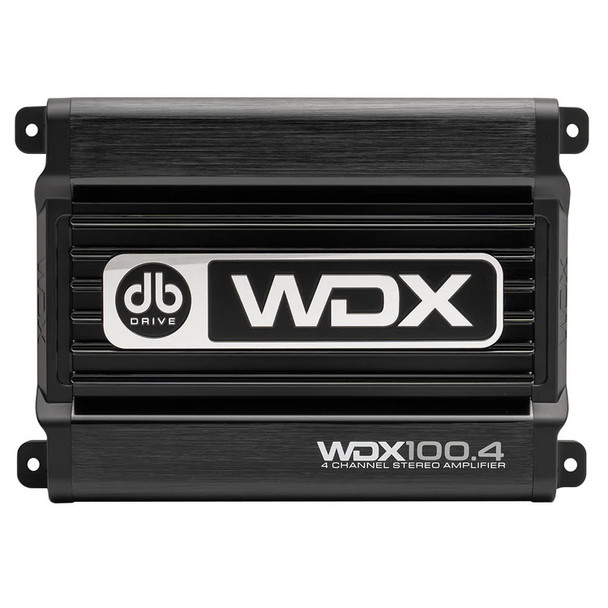

DB Drive WDX100.4 | 600W 4 Channel Full Range Amplifier

DB Drive WDX100.4 | 600W 4 Channel Full Range Amplifier

Experience the ultimate sound performance with the DB Drive WDX100.4 4 Channel Class D Stereo Amplifier.

Engineered with Direct Connect Speaker Terminals and a 4 Gauge Power Wire Input, this amplifier ensures seamless connectivity and powerful output. Its Adaptive Crossover Technology and Audio Protection Circuit guarantee precise sound quality and safeguard your audio equipment from damage. With the capability to operate at 2Ω Stereo or 4Ω Bridged, and delivering a formidable 4 x 150W power at 14.4 volts, the WDX100.4 is designed to meet the needs of any audiophile.

Elevate your audio experience with the DB Drive WDX MINI AMPLIFIERS series and let every beat resonate with clarity and power.

Also Known As: WDX1004 / WDX-1004 / WDX-100.4 / WDX-100/4

Specs:

• Rated Power @ 14.4 Volts

• 4 x 100 Watts @ 4 Ohm

• 4 x 150 Watts @ 2 Ohm

• 2 x 150 Watts @ 4 Ohm Bridged

• Frequency Response: 20Hz ~ 22KHz

• S/N Ratio: < 105 dB

• Low Level Input: 6V – 0.2V

• Independent Selectable X-Over F/R: HPF / LPF / BP / FULL

• Variable High Pass Filter (12DB Slope): 20Hz ~ 5KHz

• Variable Low Pass Filter (12DB Slope): 50Hz ~ 5KHz

• Bass Equalizer: 0dB – 9dB

• Working Voltage: 12-15 Volts

• Dimensions: 8.25" x 5.5" x 2.38"

• Weight (Approx.): 4 lbs.

Features:

• CLASS D CIRCUITRY

• Direct Connect Speaker Terminals

• 4 Gauge Power Wire Input

• CHM- Collective Heat Management

• ACT – Adaptive Crossover Technology

• SESI – Signal Evaluation Status Indicator

• APC – Audio Protection Circuit

Owner's Manual / Spec Sheet

Shop For Wiring & Batteries

Please feel free to send us a message if you have any questions about this item.
