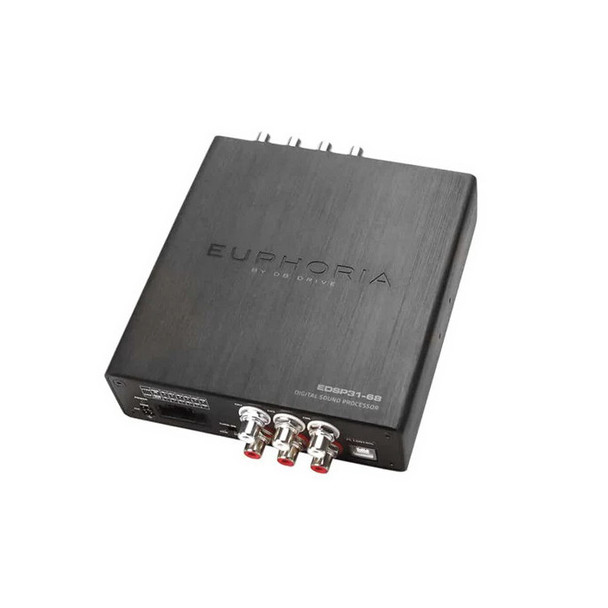

DB Drive Euphoria EDSP31-68 | 31 Band 8 Channel Graphic Equalizer DSP Processor

DB Drive Euphoria EDSP31-68 | 31 Band 8 Channel Graphic Equalizer DSP Processor

Elevate Your Audio Experience with Euphoria's EDSP31-68

The Maestro of Sound Precision. Step into the future of audio excellence with Euphoria's EDSP31-68, a 31 Band DSP Processor that redefines the boundaries of sound. Tailored for the discerning audiophile, this processor boasts an array of features that ensure unparalleled sound clarity and customization. With DSP settings and adjustments accessible via PC or an optional smartphone app, and six assignable inputs, this device offers flexibility and control at your fingertips. The EDSP31-68 also includes eight independently assignable low-level outputs and selectable crossover slopes, allowing for precise sound tailoring. Its 31 Band Graphic EQ provides fine-tuning capabilities, while adjustable high, band-pass, or low-pass filters ensure the perfect sound balance across all frequencies. Additionally, its adjustable time alignment per output channel and phase adjustment options guarantee precision in sound delivery. Whether you're streaming wirelessly with the optional dongle or using the optional dash remote for subwoofer control, the Euphoria EDSP31-68 stands as an epitome of audio innovation, bringing your listening experience to an elegant new level.

Features:

• DSP Settings and Adjustments made via PC or Optional Smart Phone App
• 6 Assignable Inputs
• Selectable Audio Input: Front, Rear and Subwoofer Low-Level- Front and Rear Hi-Level
• Optional Wireless Audio Streaming Dongle ( Sold separately )
• 8 Independently Assignable Low-Level Outputs
• Summable Input Channel
• Selectable Crossover Slopes: ( 6, 12, 18, 24, 30, 36, 42, 48 dB/Octave )
• 31 Band Graphic EQ with Fine Tuning
• Adjustable High, Band-Pass, or Low-Pass Filters (20KHz-20Hz)
• Adjustable Time Alignment per Output Channel
• Adjustable Q-Factor per Frequency
• Phase Adjustment: Switchable 0/180 Degrees on all Output Channels
• Audio Sensing Auto Remote Output
• Includes USB cable for Windows software or QR codes for Phone App
• Optional Dash Remote with Subwoofer Control (Sold separately)
• Compatible Microsoft Windows® XP SP3 / Vista / 7 / 8 / 8.1 / 10
• Software Download available on DB Drive's website

Total Weight (Approx.): 2 lbs.

Owner's Manual / Spec Sheet

Please feel free to send us a message if you have any questions about this item.
