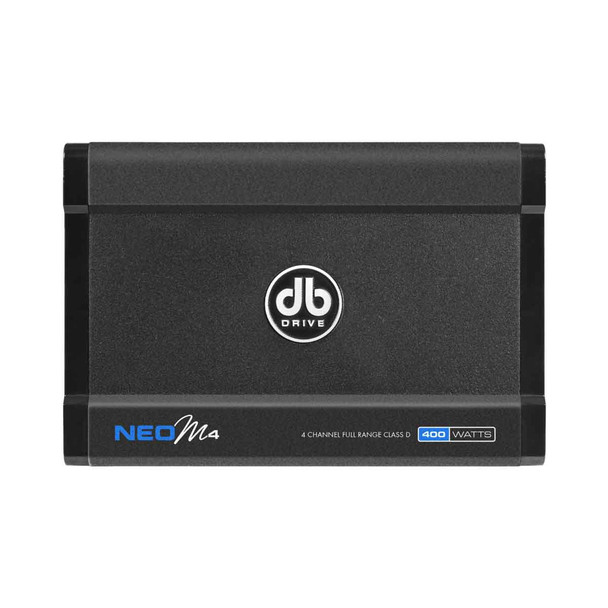

DB Drive NEO-M4 | 400W RMS 4 Channel Full Range Marine Amplifier

DB Drive NEO-M4 | 400W RMS 4 Channel Full Range Marine Amplifier

Introducing the NEO-M4 Marine NEO Mini 4 Channel Amplifier, a powerful addition to your audio system.

With a compact size and audiophile-grade nickel plated RCA connectors, this amplifier from DB Drive is designed to deliver exceptional performance. Its marine-grade conformal coated double-sided PCB ensures durability and reliability, making it perfect for any environment. The 4 channel Class D internal circuitry provides impressive power, with a rated power of 4x100 Watts at 2Ω and 4x50 Watts at 4Ω.

Whether you're looking to enhance your car audio or marine audio setup, this amplifier is the ideal choice. Take your audio experience to new heights with the NEOM4 Marine NEO Mini 4 Channel Amplifier.

Specs:

• Rated Power @ 14.4 Volts

• 4 x 50 Watts @ 4 Ohm

• 4 x 100 Watts @ 2 Ohm

• Minimum Load Impedance: 2 Ohm

• THD: 0.04%

• Bandwidth (-3 dB): 18Hz ~ 22KHz

• Damping Factor: 100

• S/N Ratio (as weighted @ 1 Volt): 99dB

• Input Sensitivity: 0.20V ~ 9.0V RMS

• Low-Pass Filter Range: 50Hz ~ 150Hz

• Sub-Sonic Filter Range: 15Hz ~ 50Hz

• Dimensions: 6.1" x 4.13" x 1.92"

• Weight: 1.18 lbs.

Features:

• Marine Grade Conformal Coated Double Sided PCB

• 4 Channel Class D Full Range Technology

• 2 Ohm Stereo Load Capability

• Audiophile Grade Nickel Plated RCA connectors

• 12dB High-Pass Crossover Filter

• Compatible With any 4/2 Ohm Loudspeaker
