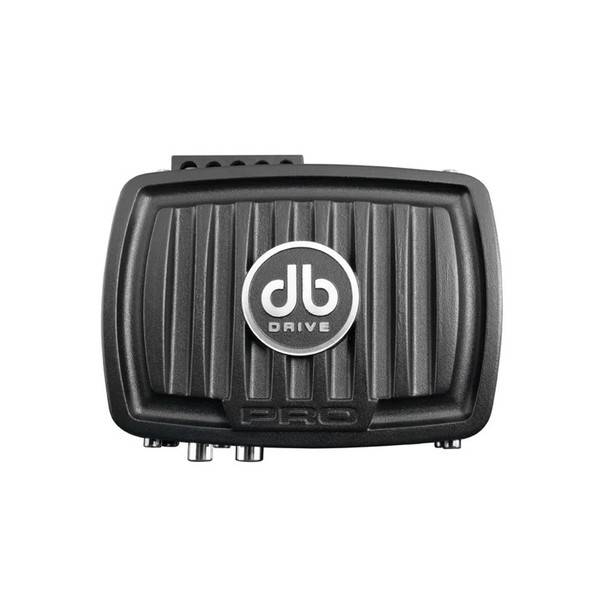

The DB Drive WDX P200.2 is an ultra-compact, 2-channel Class D mini powersports amplifier built for space-constrained environments. It is engineered to deliver high-efficiency audio output for motorcycles, ATVs, UTVs, and watercraft without taxing small vehicle electrical systems.

Also Known As: WDXP2002 / WDX-P2002 / WDXP200.2 / WDX-P200.2

Specs:

• Rated Power @ 14.4 Volts

• 2 x 100 Watts @ 4 Ohm

• 2 x 150 Watts @ 2 Ohm

• 1 x 300 Watts @ 4 Ohm Bridged

• Minimum Working Impedance: 2 Ohm Stereo or 4 Ohm Bridged

• Features Low Level RCA Inputs

• Fixed High Pass Filter: 150Hz

• Fixed Pass Filter: 150Hz

• Dimensions: 5" x 3" x 1.89"

• Weight (Approx.): 2 lbs.

Features:

• Conformal PCB Coating: The internal circuit boards are specially coated to repel moisture, dust, and coastal humidity

• CHM (Collective Heat Management): An intelligent internal cooling profile helps prevent thermal shutdown in unventilated fairings or compartments

• ACT (Adaptive Crossover Technology): Includes fixed 150Hz High-Pass (HPF) and Low-Pass (LPF) crossover filters for instant speaker optimization

• APC (Audio Protection Circuit): Guards the hardware against electrical shorts, clipping, and overloads

• Wiring Interface: Employs rugged 10-gauge wire inputs for steady current flow
