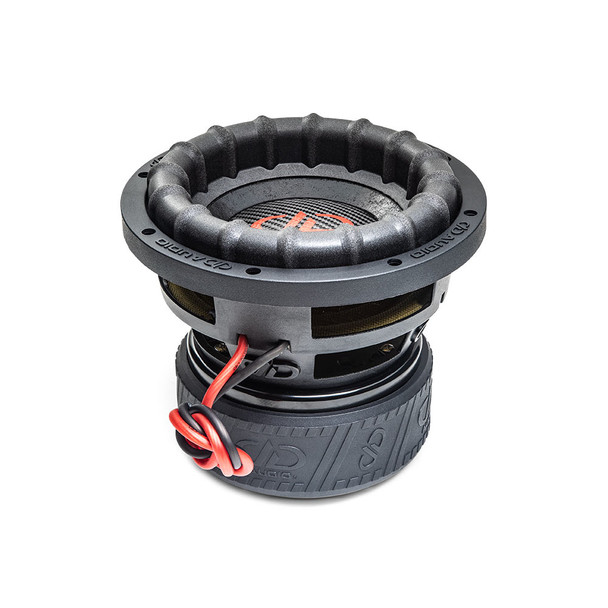

DD Audio 2500-Series 8 Inch 3600W DVC 2 Ohm Subwoofer | 2508g

(1) DD Audio 2500-Series 8 Inch 3600W DVC 2 Ohm Subwoofer | 2508g

It’s a favorite among enclosure builders and installers for its performance and versatility. It’s enjoyed daily by drivers who love their music and have a tendency to get over enthusiastic with the bass knob. It’s also a testament to DD AUDIO’s quest for performance, devotion to USA Made build quality, and commitment to the ever evolving audio engineering process that comes with the modernization of materials and tooling.

The “g” latest revision of the 2508 features major performance enhancements, such as an increased magnet diameter for greater power and control, new dual stage aluminum heat sinks for improved heat management, a reimagined competition grade iron cloth spider with more stability and better durability, a second generation V-ROM surround with triple density expansion joint to further smooth the effects of expansion/contraction, an X-5 carbon loaded synthetic fiber non-pressed pulp cone with a peerless strength to weight ratio, plus DD AUDIO’s proven Evolution Subwoofer Package, Free Flow Cooling System, and hand made in Oklahoma City quality.

Also Known As: 2508g-D2 / 2508gD2 / DD2508g-D2 / DD2508gD2 / DD-2508g-D2

Specs:

• Speaker Size (In): 8

• Watts RMS: 1200

• Watts Peak: 3600

• Impedance: D2

• VCD (In): 2.5

• Piston Diameter (In): 7.25

• Fs (Hz): 42

• Qms: 5.88

• Qes: 0.62

• Qts: 0.56

• Vas (Liters): 4.64

• Xmech (MM): 57

• Xmax (MM): 20

• Frame OD (In): 8.95

• Frame OD w/Gasket (In): 9.25

• Mounting Diameter (In): 8

• Mounting Depth (In): 6.69

• Motor Diameter (In): 7

• Motor Depth (In): 3.25

• Woofer Displacement (CuFt): 0.08

• Sealed Enclosure (CuFt): 0.4 - 0.8

• Ported Enclosure (CuFt): 0.75 - 1.25

• Weight (Lbs): 29

Features:

• New Aluminum 2 Stage Heatsink

• 7.0 Inch Diameter Motor

• 20mm Top Plate

• New 2nd Gen V-ROM surround

• New Ironcloth Double Spider System

• Hand Laid Carbon Fiber Dust Cap

• DD ESP Cast Frame

• Carbon Fiber Loaded, Non-Pressed Pulp Cone

• Direct Leads

• Laminated Tinsel Leads

• Embossed DDesign Magnet Boot
