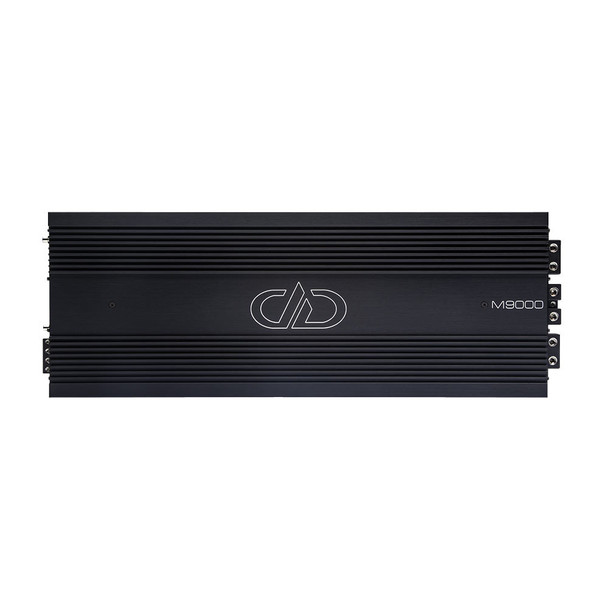

DD Audio M-Series 9000W RMS Monoblock Subwoofer Amplifier | M9000
- MPN:
- M9000
- Condition:
- New
- Shipping:
- Free (2 to 6 Business Days)
Description
DD Audio M-Series 9000W RMS Monoblock Subwoofer Amplifier | M9000
The upgraded M9000 features the 7th generation M Series high-current amplifier circuit, refined with new enhancements focused on extended reliability, durability, and improved transient response. These upgrades provide greater control and stability under load for improved sound quality revealed through tight, solid, and shocking low-end punch. DD Audio further beefed up internal high current pathways on the PCBs in multiple ways. These upgrades allow the M9000 high current, half bridge amplifier to run with lower internal stress during tortuous demo sessions while driving difficult and demanding impedance curves.
The M9000’s chassis features DD Audio’s exclusive High Volume Air Circulation (HVAC) heat management system. The mass and intelligent fin design of the super heavy-duty extruded aluminum heatsink constantly conducts heat away from internal components. An internal brushless fan pulls in cooler air through an elevated bottom panel and end panel vents to maximize air flow.
Also Known As: M-9000 / M9000.1 / M-9000.1 / DDM9000 / DD-M9000
Specs:
• Operating Voltage: 9 - 16
• Test Voltage: 14.4
• Input Channel(s): 1
• Output Channel(s): 1
• Continuous Wattage @4ohm: 3000
• Continuous Wattage @2ohm: 5500
• Continuous Wattage @1ohm: 9000
• Max Current Draw (Amps): 1500
• RCA Input Voltage Sensitivity: 8 - 0.25
• RCA Input S/N: > 105
• Damping Factor: > 400
• Frequency Response (Hz): 20 - 500
• Sub-Sonic Filter (Hz): 20 - 250
• Low-Pass Filter (Hz): 50 - 500
• Remote Control: Remote Included in Box
• ZVL Input: Yes
• Power Wire Gauge: 3 x 0
• Speaker Wire Gauge: 10
• Dimensions (Inches): 25.75 x 9 x 2.85
• Shipping Weight (Lbs): 32
Features:
• Optimized Uber High Current Power Supply
• ZVL Linking Module Input
• 24dB/Oct Bandpass Filters
• Custom Vanity Plate Ready (not included)
• Triple Power Terminal Blocks
• Remote / LCD Voltage Display and Clipping Indicator
• 9000 Watts RMS Continuous Power
