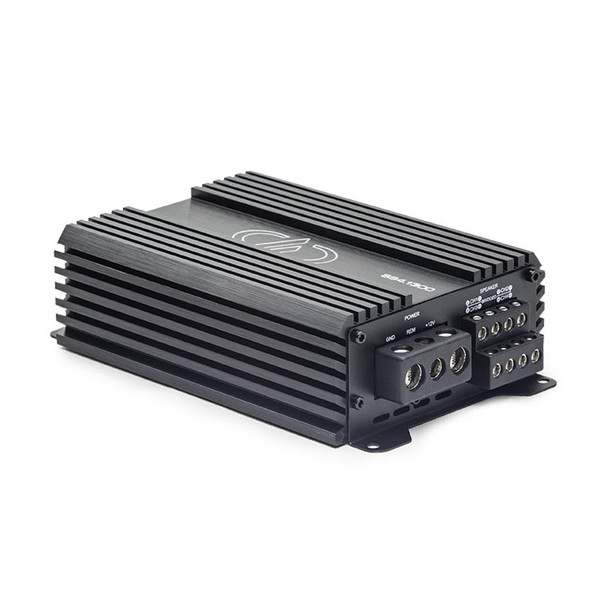

DD Audio SS-Series 1300W RMS 4 Channel Full Range Amplifier | SS4.1300

DD Audio SS-Series 1300W RMS 4 Channel Full Range Amplifier | SS4.1300

The new SS4.1300 brings next level power to the multi-channel wing of the SS Series amplifier line-up. With nearly 200 watts per channel at 4 Ohms and over 325 Watts at 2 Ohms, these compact amps will drive pro audio and motorcycle systems to new extremes with exceptional sound quality.

The SS amplifiers quickly earned a reputation for big clean power from a small package. Their high speed, high current class D designs offer high power and superior sound quality in compact footprints. The classic DD AUDIO style heat sink provides max cooling thanks to 50% more side wall thickness than industry norms with extra long fins to increase surface area. As with all DD amps, all major components are name brands; use higher current mosfets and output devices, increased power capacitors, a more powerful transformer, plus improved venting and PCB with twice the thermal capability.

These new high-end mini amps are state of the art, no compromise designs yielding the best sound with unparalleled power to size ratio. The transformation is physically tangible and audibly undeniable.

Also Known As: SS41300 / SS1300.4 / DD-SS4.1300

Specs:

• Operating Voltage: 9 - 16

• Test Voltage: 14.4

• Input Channel(s): 4

• Output Channel(s): 4

• Continuous Wattage @4ohm: 180 x 4 / 650 x 2 Bridged

• Continuous Wattage @2ohm: 325 x 4

• Max Current Draw (Amps): 150

• RCA Input Voltage Sensitivity: 6 - 0.25

• High-Level Input Voltage Sensitivity: 20 - 1.1

• RCA Input S/N: > 95

• Damping Factor: > 100

• THD: < 1.0%

• Frequency Response (Hz): 20 - 20k

• High Pass Filter: 20 - 5K

• Low-Pass Filter: 50 - 20K

• Power Wire Gauge: 4

• Speaker Wire Gauge: 14

• Dimensions (Inches): 6.25 x 4.6 x 2

• Shipping Weight (Lbs): 4

Features:

• High Level Inputs

• 12dB/Oct High Pass/Low Pass X-Overs

• Heavyweight DD Aluminum Chassis

• Set Screw Power and Speaker Terminals

• 4 AWG Power Terminals

Owner's Manual / Spec Sheet
