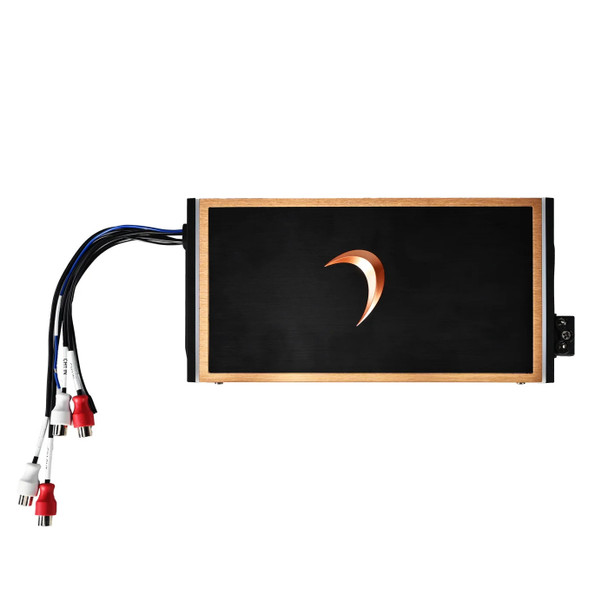

Diamond Audio NEO10001DSP | 1000W RMS Monoblock Subwoofer Amplifier w/DSP

Diamond Audio NEO10001DSP | 1000W RMS Monoblock Subwoofer Amplifier w/DSP

The Diamond Audio NEO10001DSP is the definitive solution for audiophiles seeking the perfect balance of raw power and sophisticated tuning. As a high-efficiency Class D Monoblock amplifier , it delivers a robust 1000W RMS at 1Ω , providing the dependable strength needed for high-performance subwoofers while maintaining the pure sonic clarity Diamond Audio is known for.

Unlike standard monoblock amplifiers, the NEO10001DSP features an integrated, full-service Digital Signal Processor . With 31 bands of parametric EQ , precise crossovers, time delay , and channel linking, you have total command over your soundstage. Whether you are tuning via PC or Android , the NEO Series provides a professional-grade interface to calibrate your system for any acoustic environment. (software available directly from Diamond Audio.)

Designed for the modern vehicle landscape, the NEO10001DSP excels in integration with onboard 4CH DSP. It features high-voltage signal inputs (up to 20V) and selectable on-board load resistors (10Ω - 20kΩ) to interface perfectly with complex factory (OEM) systems . Furthermore, its EV-friendly voltage compatibility (8-17V) ensures stable performance in electric and hybrid vehicles without compromising the vehicle’s electrical integrity.

Built to perform in diverse environments, the NEO10001DSP features a marine-ready , water-resistant chassis , making it an ideal choice for both high-end car audio and powersports installations . The compact footprint , staggered RCA connections, and high-current quick-connect power blocks ensure a clean, professional installation even in tight spaces.

Also Known As: NEO-10001DSP / NEO1000.1DSP / NEO-1000.1DSP / NEO-1000.1-DSP

Specs:

• 1 x 1000W RMS @ 1 Ohm

• 1 x 800W RMS @ 2 Ohms

• 1 x 600W RMS @ 4 Ohms

• Frequency Response: 10Hz- 30kHz

• Input Sensitivity: 0.4-20V

• Signal to Noise Ratio: 95 dB

• THD & Noise: ≤0.03%

• Dimensions: 8.8" x 4.07" x 1.38"

• Weight: 2.4 lbs.

Features:

• Marine Ready, Water-Resistant Chassis

• Bluetooth Audio Streaming Direct To Amplifier

• Control Via iOS Or Android App

• Staggered RCA Connections For Clean Installations

• High-Current Quick-Connect Power Block

• NEODRC1 Diamond Remote Commander Compatible (Sold Separately)

• 2 RCA Preamp Outputs For System Expansion

Owner's Manual / Spec Sheet
