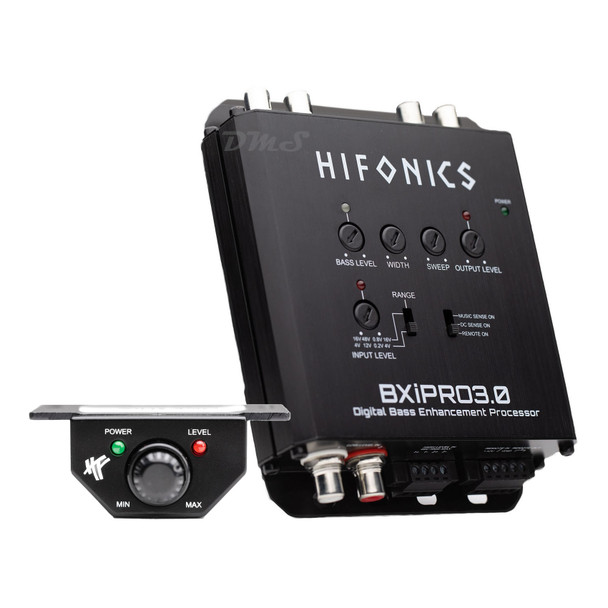

Hifonics BXiPRO3.0 | Digital Bass Processor Line Driver w/ Remote Bass Knob

Hifonics BXiPRO3.0 | Digital Bass Processor Line Driver w/ Remote Bass Knob

The Hifonics Brutus BXiPRO3.0 is an advanced, all-in-one digital bass reconstruction processor and signal optimizer. This unit serves dual roles: it functions both as a digital bass "epicenter" processor to restore bottom-end sub-bass frequencies and as a highly flexible line-out converter/driver. It is designed to restore missing low-frequency information from older, compressed, or poorly recorded audio tracks, sending a clean, powerful signal back out to your subwoofer or full-range amplifiers.

Also Known As: BXiPRO30 / BXi-PRO30 / BXi-PRO3.0

Features:

• Digital Bass Enhancer Processor
• Dash Mount "Bass Knob" Control
• Parametric Bass Bass Output Control
• Wide and Sweep Level Control
• Full Range Output Control
• Tiffany-Style RCA Inputs/Outputs
• Compact Footprint

Specs:

• Fuse Value: 1A mini ATC
• Input Voltage Range: 9.5V -15V
• Bass Remote Type: HF-U-02
• Maximally Flat Frequency Response Main (-3dB): 10Hz to >50kHz
• Input Impedance Low Level Inputs: 20k Ohms
• Input Impedance High Level Inputs: 20k Ohms
• Maximum High Level Input Voltage: > 48V
• Maximum Output voltage at 1.0% THD+N: 9.0V
• Signal to Noise Ratio (ref to 2Vrms out, unity gain): 84.0dBA
• EQ Boost: Variable To +8.1dB
• Current Draw: 0.32A
• Turn on Delay Time: 0.1 seconds
• Weight (Approx.): 1 lbs.

Owner's Manual / Spec Sheet

Please feel free to send us a message if you have any questions about this item.
