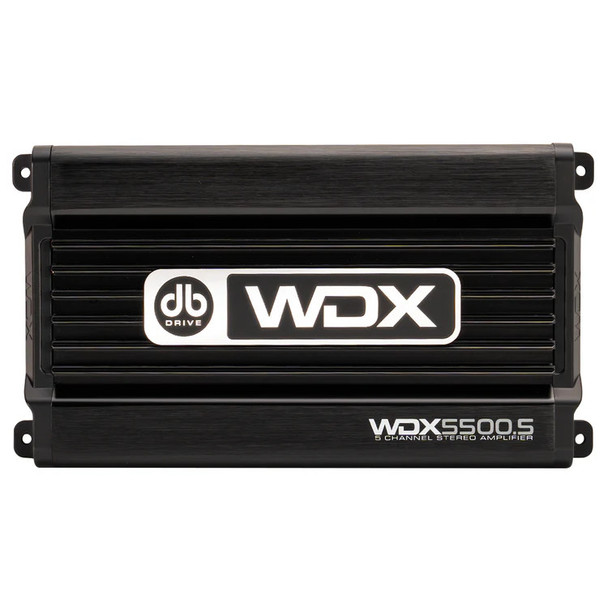

DB Drive WDX5500.5 | 2100W 5 Channel Full Range Amplifier
- MPN:
- WDX5500.5
- Condition:
- New
- Shipping:
- Free (2 to 6 Business Days)
Description
DB Drive WDX5500.5 | 2100W 5 Channel Full Range Amplifier
Discover the pinnacle of audio excellence with the DB Drive WDX5500.5: 5 Channel Class D Amplifier.
Designed for the true audiophile, this amplifier boasts an impressive 2Ω stereo and 2Ω 5th channel capability, making it perfect for any sound system setup. The innovative Direct Connect Speaker Terminals and 4 Gauge Power Wire Input ensure a seamless and powerful connection, while the Collective Heat Management and Adaptive Crossover Technology keep your system running smoothly and efficiently. With features like Signal Evaluation Status Indicator and Audio Protection Circuit, your sound is protected and optimized at all times. Rated at 14.4 volts, this powerhouse delivers 4 x 200W at 4Ω + 500W at 2Ω, and 4 x 400W at 2Ω + 500W at 2Ω, providing unmatched clarity and power. The variable subsonic filter allows for fine-tuning between 0Hz and 25Hz, ensuring your bass hits just right.
Elevate your audio experience with the WDX MINI AMPLIFIERS series and let the WDX5500.5 transform your sound system into a masterpiece.
Also Known As: WDX55005 / WDX-55005 / WDX-5500.5
Specs:
• Rated Power @ 14.4 Volts
• 4 x 200 Watts @ 4 Ohm
• 4 x 400 Watts @ 2 Ohm
• Ch.5: 500 Watts @ 2 Ohms
• Frequency Response: 20Hz ~ 22KHz
• S/N Ratio: < 105 dB
• Low Level Input: 6V – 0.2V
• Independent Selectable X-Over F/R: HPF / LPF / FULL
• Variable High Pass Filter (12DB Slope): 40Hz ~ 300Hz
• Variable Low Pass Filter (12DB Slope): 40Hz ~ 300Hz
• Variable Subsonic Filter (12 dB Slope): 0Hz ~ 25Hz
• Bass Equalizer: 0dB – 12dB
• Working Voltage: 12-15 Volts
• Dimensions: 10.63" x 5.5" x 2.38"
• Weight: 6.5 lbs.
Features:
• CLASS D CIRCUITRY
• CHM - Collective Heat Management
• ACT – Adaptive Crossover Technology
• SESI – Signal Evaluation Status Indicator
• APC – Audio Protection Circuit
• Included Remote Level Control
• Direct Connect Speaker Terminals
• 4 Gauge Power Wire Input
