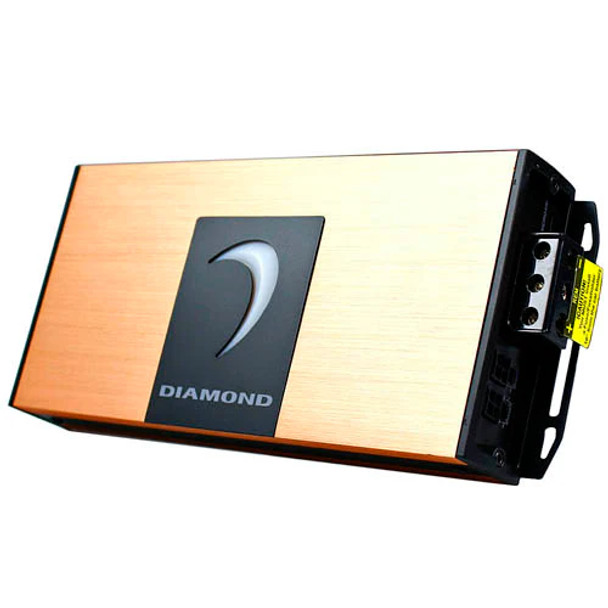

Diamond Audio MICRO4V2 | 600W RMS 4 Channel Full Range Amplifier

Diamond Audio MICRO4V2 | 600W RMS 4 Channel Full Range Amplifier

Discover exceptional sound quality in a compact design with Diamond Audio’s MICROV2 series of amplifiers. Utilizing ultra-efficient full-range Class D topology, these amplifiers deliver impressive power despite their small size. The MICROV2 series also features advanced Rollback/Thermal protection, ensuring continuous and uninterrupted play without any risk of shutdown.

The installation possibilities are endless with the MICROV2 series! These amplifiers boast an ultra-compact, high-density aluminum alloy chassis, making them versatile and easy to fit in any setup. Balanced differential inputs ensure noise-free operation, while full-range digital Class D technology with Direct FET power MOSFET output stage guarantees top-notch performance.

With 12dB per octave adjustable crossovers, Diamond bass boost EQ (12dB @ 45Hz), and advanced rollback power circuitry to keep your amp cool, the MICROV2 series keeps your music playing smoothly. The selectable 3-option Auto Turn-On Mode circuit is designed to work with any OEM head unit, simplifying installation and making it more convenient.

When you need quality and performance in a small package, look no further than the MICROV2 series from Diamond Audio. Upgrade your audio system today and experience the perfect blend of power, efficiency, and flexibility.

Specs:

• RMS Power Rating: 600 W RMS

• RMS Power (2Ω): 150W x 4

• RMS Power (4Ω): 80W x 4

• RMS Bridged (mono 4Ω): 300W x 2

• Topology: Full-Range Class D

• Power Supply: Full PWM

• Power Supply (Threshold): 10.0VDC – 17.0VDC

• Idle Current: (0.7A)

• Distortion - THD (1KHz@4Ω): 0.5%

• Distortion - S/N Ratio (A weight @ 1W): -85dBA

• Distortion - S/N Ratio (A weight @ FP): -101.1dBA

• Input Sensitivity: 200mV – 10.0V

• Input Impedance - Low Input Level: 20 KΩ

• Input Impedance - AUX Input Level: 20 KΩ

• Output Impedance: 0.018Ω

• Damping Factor (50Hz@4Ω): >70

• Bandwidth (-3dB): 10Hz-350Hz

• Crossover (-12 dB/ Oct) Variable HIgh-Pass: 40Hz-400Hz

• Crossover (-12 dB/ Oct) Variable Low-Pass: 40Hz-400Hz

• FUSE Ratings - ATC: 40A

• Dimensions: 9.7″ x 4.0″ x 1.46″ (230.5 x 103 x 37.2 mm)

Features:

• Crossover Filter : 40-400Hz, 12dB Per Octave Slope

• Selectable REM / VOX / DC Turn On Modes

• Selectable X-Over: LPF / FLAT / HPF

• Selectable 2CH / 4CH Input Modes

• Disconnected RCA Input & Speaker Output Harness Kits Included
