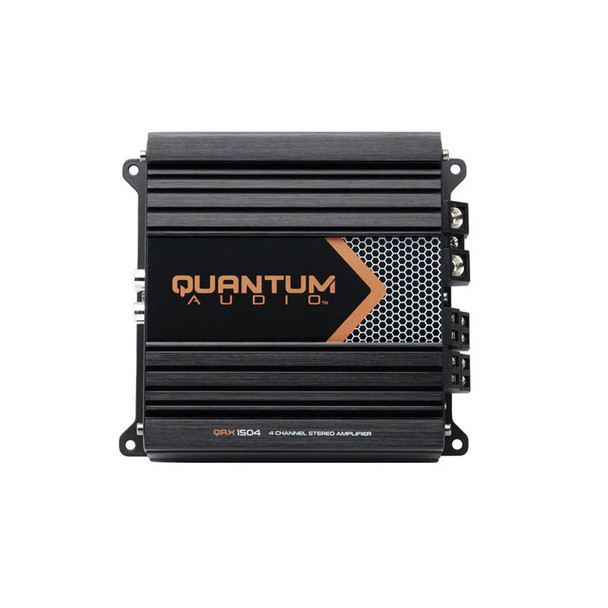

Quantum Audio QRX1504 | 1200W 4 Channel Full Range Amplifier

Quantum Audio QRX1504 | 1200W 4 Channel Full Range Amplifier

The Quantum Audio QRX1504 is a high-efficiency 4-channel Class D car amplifier designed for high-power output in a compact "mini" or "micro" footprint. It is built to deliver full-range performance for speakers while remaining small enough for tight installations, such as under seats or in motorcycles.

Also Known As: QRX-1504 / QRX150.4 / QRX-150.4

Specs:

• 4 x 150 Watts @ 4 Ohms

• 4 x 300 Watts @ 2 Ohms

• 2 x 600 Watts @ 4 Ohms Bridged

• Compatibility: 2 Ω Stereo

• THD at Rated Power: <0.5%

• Bandwidth (-3 dB): 18Hz - 22KHz

• Damping Factor (1k Hz @ 4Ω): 100

• Signal to Noise Ratio: >90dB

• Input Sensitivity: 285Mv - 6V

• Crossover Filter Slope in Stereo: 12dB

• Variable HP/LP Crossover Filters: 40Hz - 3KHz

• Dimensions: 6.05" x 5.53" x 2.33"

• Total Weight (Approx.): 4 lbs.

Features:

• 4 Channel Full Range Class D Circuitry

• 2 Ω Stereo Load Capability

• Low Level RCA inputs

• High Level Inputs

• Selectable Crossover: HPF/LPF/Full

• Bridgeable Outputs @ 4 Ω load

• Compatible With Any 4/2 Ω Loudspeaker

• High Efficiency Mosfet Design

• Heat Management System

Shop For Wiring & Batteries

Please feel free to send us a message if you have any questions about this item.
