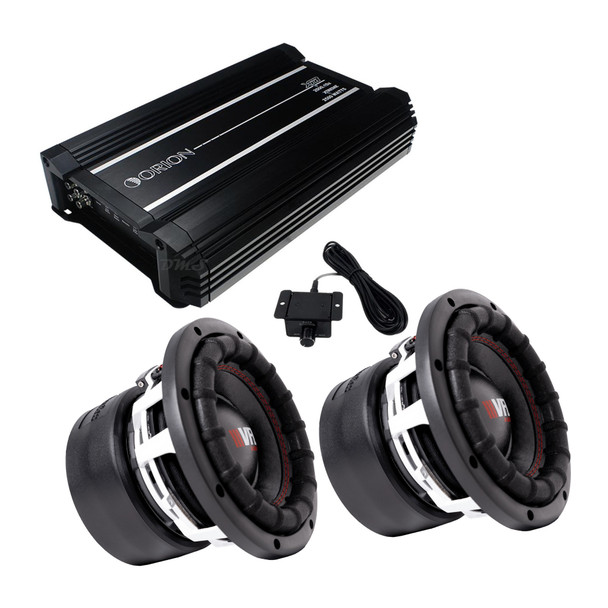

VFL Audio VFL 8 V2 Package | Dual 8" 1600W D2 Subwoofers & Orion XTR2500.1DZ Amplifier

Sub & Amp Package Deal

(2) VFL Audio VFL 8 Inch 1600W DVC 2 Ohm Subwoofers | VFL822 V2

(1) Orion XTR 2500W RMS Monoblock Subwoofer Amplifier | XTR2500.1DZ

*This setup is intended to run at 2 Ohms

The VFL series from American Bass is specially designed to give you power and sound that leaves the competition behind. The VFL 8" subwoofer boasts 800W RMS of power with a 120 oz magnet to unleash bass that reverberates through your very core. Engineered with dual 2-ohm impedance and a robust 2.5" voice coil, this subwoofer stands as a beacon of American Bass USA's dedication to superior sound, ensuring every pulse of bass is sharp, deep, and utterly transformative.

Also Known As: VFL-822 / VFL8D2 / VFL-8-D2 / VFL-8D2 / VFL-8D2-V2 / VFL-822-V2

Sub Details (each):

• MAX Power Handling: 1600W
• RMS Power Handling: 800W
• Impedance: DVC 2 Ohm
• Sensitivity: 80.9 dB
• Mounting Diameter: 7.40"
• Mounting Depth: 5.43"
• Weight: 18 lbs.
• 2.5" Diameter 4-Layer High-Temp Voice Coil
• Heavy Duty Die Cast Basket With White Powder Finish
• Kevlar Fiber Added Non-Press Paper Cone
• Red Stitched Hi-Roll Ribbed Foam Surround
• Kevlar Woven Composite Dust Cap
• Black Poly-Cotton Spider With Mirror Image
• Top Spider With Woven Tinsel
• Double Stacked 120oz. Magnets
• Direct VC Cooling Motor
• Rubber Gasket & Magnet Boot
• Recommended Ported Box Size: 1.25 Cubic Feet
• Owner's Manual / Spec Sheet

Amplifier Details:

• 2500W RMS X 1 @ 1 Ohm
• 1750W RMS X 1 @ 2 Ohms
• 1250W RMS X 1 @ 4 Ohms
• Frequency Response: 20Hz - 250Hz
• Low Pass Crossover: 30Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >88%
• Damping Factor: 200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Phase Shift: 0 - 180
• Variable Bass Boost: 0-18dB
• Subsonic Filter: Off / 25Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuses Rating: 250A External (not included)
• Positive Terminals: 1 x 0 AWG
• Negative Terminals: 1 x 0 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 4 AWG
• Dimensions: 14.17" x 9.25" x 2.75"
• Weight (Approx.): 12.65 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12dB Octave Low-Pass Filter
• Remote Gain Controller Included
• Electronic Crossover Network
• Bass Boost Circuit
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, Under & Over Voltage
