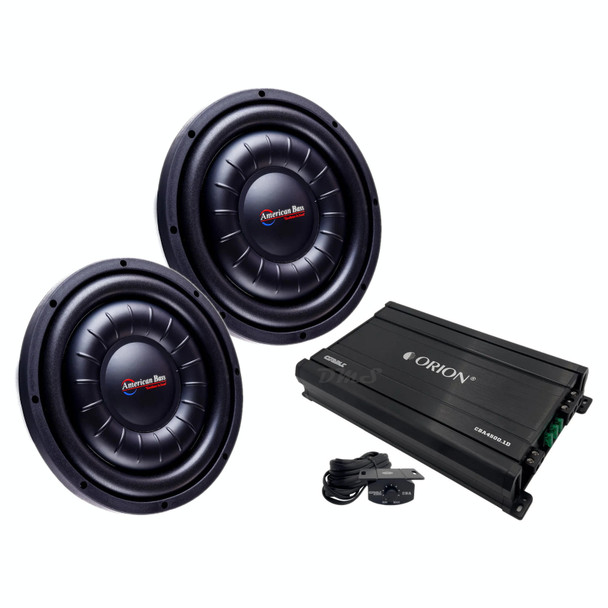

American Bass HAWK Slim 10 Package | Dual 10" 1500W D4 Subwoofers & Orion CBA4500.1D Amplifier

Sub & Amp Package Deal

(2) American Bass HAWK Slim 10 Inch 1500W DVC 4 Ohm Subwoofers | HAWKLIM1044

(1) Orion Cobalt 4500W Max Monoblock Subwoofer Amplifier | CBA4500.1D

*This setup is intended to run at 1 Ohm

You have a truck. You have a lot of power. But you don’t have a lot of space or bass. That’s why you need the American Bass Hawk Slim subwoofer. This subwoofer is so slim, you can squeeze it in any corner or crevice of your truck. But it’s not slim on sound. This subwoofer has magnets with vented cooling to keep it blasting and booming. It has high power 4 layers aluminum former voice coil to give it sharp and clear sound. It has high density foam surround and high quality spider suspension system to make it sturdy and steady. The American Bass Hawk Slim subwoofer will make your truck sound awesome with its deep and solid bass. Don’t let your space limit your sound. Get the American Bass Hawk Slim now.

Also Known As: HAWKSLIM1044 / HAWK-SLIM10D4 / HAWK-1044SL / HKS1044

Sub Details (each):

• MAX Power Handling: 1500W
• RMS Power Handling: 700W
• Impedance: DVC 4 Ohm
• Sensitivity: 84.3 dB
• Mounting Depth: 3.15"
• Cutout Diameter: 9.25"
• Weight: 17 lbs.
• 2.75" 4-Layer Aluminum Voice Coil
• 80oz High-Energy Magnet Structure w/ Venting
• High Density Foam Surround
• High Quality Spider Suspension Assembly
• Gloss Black Stamped Steel Basket
• Recommended Ported Box Size: 0.6 - 0.9 Cubic Feet
• Owner's Manual / Spec Sheet

Amplifier Details:

• 4500W Peak Rating
• 1200W RMS X 1 @ 1 Ohm
• 650W RMS X 1 @ 2 Ohms
• 400W RMS X 1 @ 4 Ohms
• Frequency Response: 10Hz - 250Hz
• Subsonic: 15 - 50Hz
• Low Pass Crossover Continuously Variable: 40 - 250Hz
• Supply Voltage: 10 - 16V
• Input Impedance: 22k Ohm
• Signal to Noise Ratio: >90 dB
• Phase Shift: 0/180 Degrees
• Variable Bass Boost: 0 - 12dB
• Variable Input Level Control: 0.2V - 6.0V
• Fuse Rating: 105A (3 x 35A ATC)
• Positive Terminals: 1 x 4 AWG
• Negative Terminals: 1 x 4 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 10 AWG
• Dimensions: 12.56" x 7.09" x 2.13"
• Weight (Approx.): 6 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 1-Ohm Stable
• Remote Gain Controller Included
• RCA Out Throughput
• 12dB Octave Low-Pass Filter
• Electronic Crossover Network
• Bass Boost Circuit
• Intelligent Power and Protection LED Indicator
• Soft Turn-on/Turn-off
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, Under & Over Voltage

Shop For Wiring & Batteries

Shop for Subwoofer Boxes

Browse Custom Box Builders

Please feel free to send us a message if you have any questions about this package.
