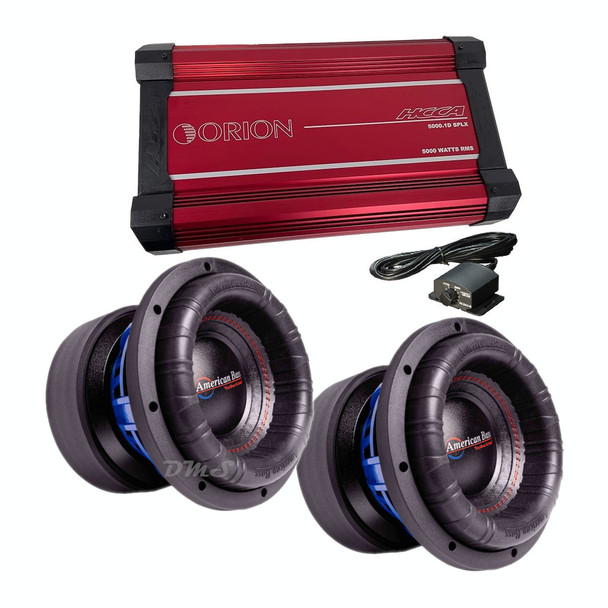

American Bass HD 10 V3 Package | Dual 10" 4000W D1 Subwoofers & Orion HCCA5000.1DSPLX Amplifier

Sub & Amp Package Deal

(2) American Bass HD 10 Inch 4000W DVC 1 Ohm Subwoofers | HD-10D1-V3

(1) Orion HCCA 5000W RMS Monoblock Subwoofer Amplifier | HCCA5000.1DSPLX

*This setup is intended to run at 1 Ohm

Get ready to shake things up with the HD Series Subwoofers! Why run an HD-10 subwoofer? These ultra-heavy-duty beauties are built to deliver gut-wrenching, earth-shaking bass that'll have even the most hardcore audiophiles grinning from ear to ear. But beware - the HD Series has enough power to rattle your fillings loose and make your rearview mirrors quiver. Just don't blame us if your windshield ends up in a million pieces (American Bass is not responsible for any accidental property damage caused by excessive bass). Upgrade your sound system with the HD Series and let the bass do the talking!

Also Known As: HD-10-11 / HD1011 / HD-1011 / HD10D1 / HD-10-D1 / HD-10D1

Sub Details (each):

• MAX Power Handling: 4000W
• RMS Power Handing: 2200W
• Impedance: DVC 1 Ohm
• Sensitivity: 84 dB
• Mounting Diameter: 9.4"
• Mounting Depth: 7.4"
• Weight: 51 lbs.
• 3.3" High-Temp 4-Layer Voice Coil
• Perimeter Vent Voice Coil Cooling
• Die Cast Aluminum Basket w/ Blue Powder Finish
• Kevlar Fiber Enforced Non-Pressed Paper Cone
• Oversized 1.4" High Density 3-Layer Foam Surround
• Double Stacked 300oz. High-Energy Magnet Structure
• Mirror Image Double Conex Spider
• Uni-Rubber Gasket and Rubber Motor Boot
• Pre-Wired 10 AWG Direct Leads
• Recommended Ported Box Size: 1.5 - 1.75 Cubic Feet

Amplifier Details

• 5000W RMS X 1 @ 1 Ohm
• 3600W RMS X 1 @ 2 Ohms
• 2300W RMS X 1 @ 4 Ohms
• Frequency Response: 15Hz - 250Hz
• Low Pass Crossover: 40Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >88%
• Damping Factor: 200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Input Impedance: 24K Ohms
• Phase Shift: 0 - 180
• Variable Bass Boost: 0-18dB
• Subsonic Filter: 10 - 40Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuse Rating: 500A External (not included)
• Positive Terminals: 3 x 0 AWG
• Negative Terminals: 3 x 0 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 4 AWG
• Dimensions: 20.47" x 11.89" x 3.15"
• Weight (Approx.): 27 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12/24dB / Octave Low-Pass Filter
• Remote Gain Controller Included
• Low-Level and High-Level Balanced Input
• Infrasonic Filter
• Concealed Controls Under Locking Top Panel Orion Patented ESP®
• Digitally Programmed Input Voltage for Fast, Accurate System Setup
• Input Sensitivity Lock-Out Mode Lock the Tweekers Out!
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, Under & Over Voltage

Shop For Wiring & Batteries

Shop For Subwoofer Boxes

Browse Custom Box Builders

Please feel free to send us a message if you have any questions about this item.
