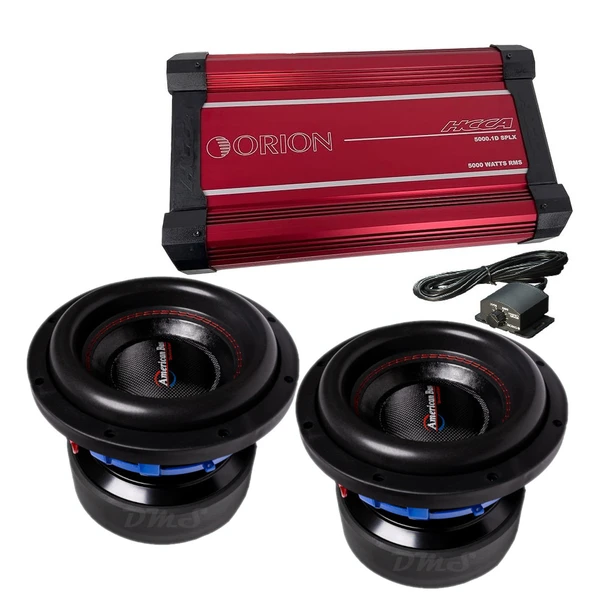

American Bass HD VELOCITY Package | Dual 10" 4400W D1 Subwoofers & Orion HCCA5000.1DSPLX Amplifier

Sub & Amp Package Deal

(2) American Bass HD VELOCITY 10 Inch 4400W DVC 1 Ohm Subwoofers | VELOCITY1011

(1) Orion HCCA 5000W RMS Monoblock Subwoofer Amplifier | HCCA5000.1DSPLX

*This setup is intended to run at 1 Ohm

Take your car audio to the next level with the American Bass HD-VELOCITY Series Subwoofer. Designed for powerful bass and lasting durability, it features a strong die-cast basket with a stylish blue finish and a carbon-fiber-enhanced cone for clean, deep sound. With a high-temperature 3.0-inch voice coil that handles up to 2200W RMS and 4400W MAX, this subwoofer delivers big sound for any setup. Its precision-engineered components, including multi-layer poly-cotton spiders and a triple-stacked magnet system, ensure efficient performance. Compatible with 1-ohm and 2-ohm setups, the HD-VELOCITY is built to fit your system and take your music to the next level.

Also Known As: VELOCITY-1011 / VELOCITY10D1 / VELOCITY-10D1 / VELOCITY-10-D1 / HD-VELOCITY-10D1

Sub Details (each):

• MAX Power Handling: 4400W
• RMS Power Handing: 2200W
• Impedance: DVC 1 Ohm
• Sensitivity: 84.4 dB
• Mounting Diameter: 9.25"
• Mounting Depth: 7.72"
• Weight: 47 lbs.
• 3.0" High-Temp Voice Coil
• Die Cast Aluminum Basket w/ Blue Powder Finish
• Carbon Fiber Enhanced Cone
• Oversized High Density Surround
• Multi Layer Poly Cotton Spider Assembly
• Triple Stacked 315oz. High-Energy Magnet Structure
• Uni-Rubber Gasket and Rubber Motor Boot
• Pre-Wired 10 AWG Direct Leads
• Recommended Ported Box Size: 1.8 - 2.5 Cubic Feet
• Owner's Manual / Spec Sheet

Amplifier Details

• 5000W RMS X 1 @ 1 Ohm
• 3600W RMS X 1 @ 2 Ohms
• 2300W RMS X 1 @ 4 Ohms
• Frequency Response: 15Hz - 250Hz
• Low Pass Crossover: 40Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >88%
• Damping Factor: 200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Input Impedance: 24K Ohms
• Phase Shift: 0 - 180
• Variable Bass Boost: 0-18dB
• Subsonic Filter: 10 - 40Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuse Rating: 500A External (not included)
• Positive Terminals: 3 x 0 AWG
• Negative Terminals: 3 x 0 AWG
• Remote Turn-On Signal: 10 AWG
• Speaker Output Terminals: 4 AWG
• Dimensions: 20.47" x 11.89" x 3.15"
• Weight (Approx.): 27 lbs.
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12/24dB / Octave Low-Pass Filter
• Remote Gain Controller Included
• Low-Level and High-Level Balanced Input
• Infrasonic Filter
• Concealed Controls Under Locking Top Panel Orion Patented ESP®
• Digitally Programmed Input Voltage for Fast, Accurate System Setup
• Input Sensitivity Lock-Out Mode Lock the Tweekers Out!
• Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, Under & Over Voltage
